Name: Air Body Saw &amp; File, 0.3" Stroke, 9000bpm
Brand: Tool
SKU: 1228
Availability: InStock

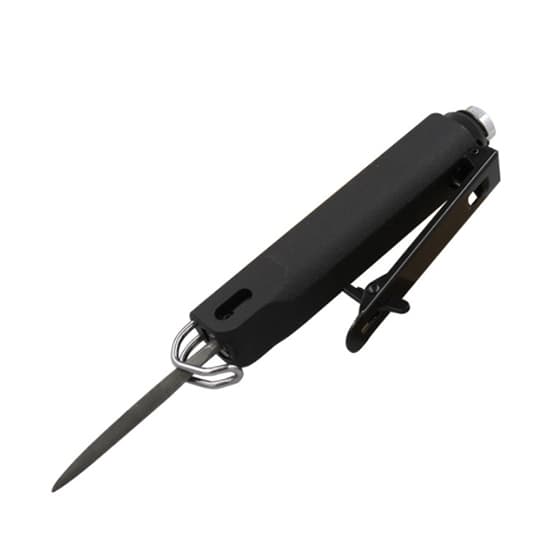

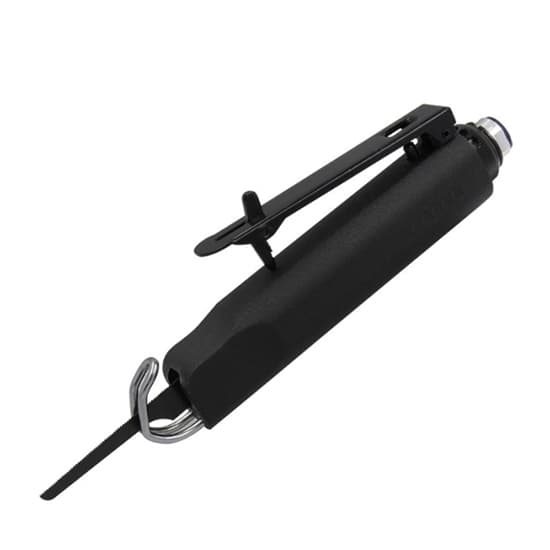

Air Body Saw & File, 0.3″ Stroke, 9000bpm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

60 People watching this product now!

Best air saw air file with 8mm stroke length is available. 9000rpm no load speed, 5cfm average air consumption, 1/4″ (6.35mm) air inlet, 5mm air hose, can install the maximum width of 12mm saw blade to cut aluminum, steel, wood, plastic, etc.

Specification

Model	T-KP-753
Stroke length	0.3″/ 8mm
Strokes per minute	9000bpm
No load speed	9000rpm
Working pressure	90 psi
File piece diameter	6mm
Air inlet size	1/4 inch (6.35mm)
Average air consumption	5cfm
Air hose size	5mm
Cutting capacity	1.6mm steel/ 2.5mm aluminum
Maximum width of saw blade	12mm
Dimension	34mm*230mm
Net weight	0.43kg
Package weight	0.5kg
Package included	1Air body saw & file 1Saw blade

Details

Tips: How does air saw & file work?

Air body saws can replace many manual saws, and are also more convenient and safer than electric saws. Here is the working principle of pneumatic body saw: The air body saw includes a drill body, a sprocket, a chain and a handle. A pneumatic motor is installed in the inner cavity of the air saw drill, and the air inlet of the pneumatic motor is equipped with an air intake pipe extending out of the drill body. A guide plate is installed at the front end of the drill body, and a sprocket is installed at the front and rear ends of the guide plate, and Chains are wound on the sprockets at both ends. The sprocket near the drill body is coaxially installed with a worm gear. A worm is installed on the output shaft of the front end of the air motor, and the worm gear is matched and meshed with the worm. The operation of the air saw requires a sufficient pressure air source, and the air energy of compressed air is used to drive the rotary pneumatic chain saw. It has a valve body with a movable valve inside, a piston cylinder is arranged inside, and the axial width of the exhaust hole of the cylinder is slightly larger than the length of the piston head, so that the piston head cannot completely cover the exhaust hole at any time, in order to help overcome the dead space when using. Air saws are widely used, mainly for wood processing, mechanical piercing, etc. It saves human resources and energy to a large extent. Air saw is a new type of mechanical processing air tool and becomes more and more popular.
