Name: Curved Jaw Locking Pliers, 5 inch/7 inch/10 inch
Brand: Tool
SKU: 365
Availability: InStock

Curved Jaw Locking Pliers, 5 inch/7 inch/10 inch

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

68 People watching this product now!

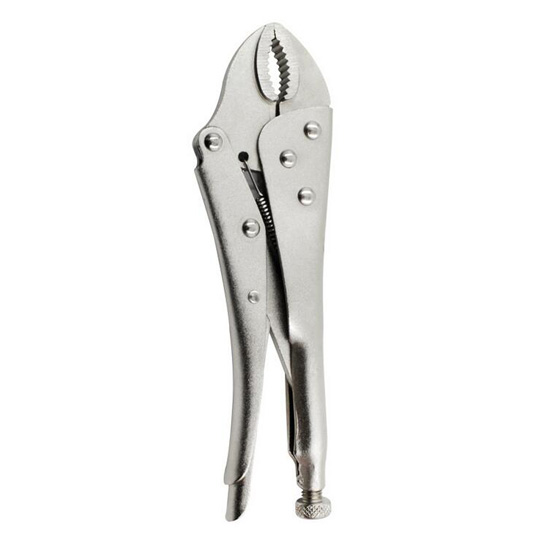

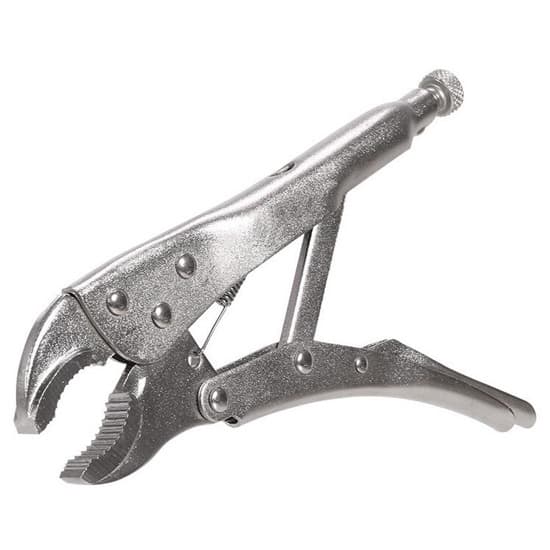

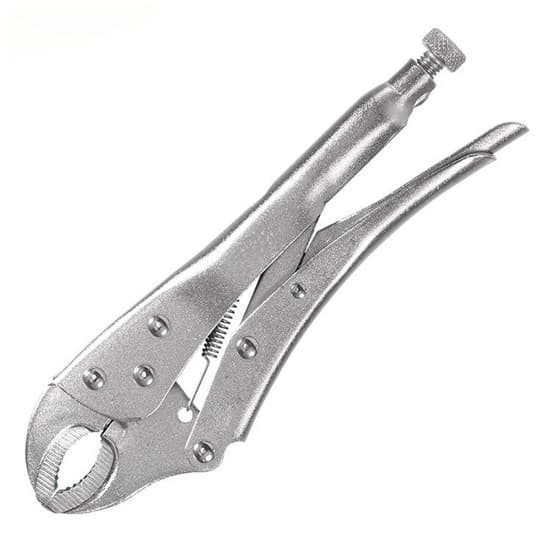

Curved jaw locking pliers, selectable 5″, 7″ and 10″ in size, features superior alloy steel construction with Nickel-plated finish, high durability and rust resistance. Locking pliers come with the adjustable screw to turn suitable holding pressure to fit work, guarded trigger release to provide quick, easy and safe work, ideal for tightening, clamping, twisting and turning.

Specification

Model	T-DLQ-5	T-DLQ-7	T-DLQ-10
Size *	5 inch	7 inch	10 inch
Material	High carbon steel
Overall Length	135mm	180mm	220mm
Jaw Length	21mm	28mm	35mm
Jaw Capacity	40mm	48mm	55mm
Jaw Type	Curved Jaw
Weight	220g	340g	470g

Note: The sizes are approximate.

Dimemsion Drawing

5-in Curved Jaw Locking Pliers

7-in Curved Jaw Locking Pliers

10-in Curved Jaw Locking Pliers

Tips: What are locking pliers?

The locking pliers, or vise grips, is mainly used to clamp and fix the parts for riveting, welding, grinding and other processing. Its features are that the pliers can be locked and produce a large clamping force, so that the clamped parts will not loose. Moreover, the clamp mouth has many adjustable positions for clamping parts of different thickness, and it can also be used as a wrench.

The locking pliers mainly uses the lever principle, and belong to a manual tool of lever enhancement. The key of its work is to obtain several times of force enhancement from the perspective of force decomposition when the angle of a group of jacking bars is relatively large. Compared with other hand tools that use the lever principle, the locking pliers apply the lever principle twice, so it saves effort. There is an adjustable screw attached to the vice grip, which can adjust the opening of the pliers’ jaw, so as to adjust the opening of the pliers’ jaw to the appropriate size, and then close it.

Locking pliers have many different configurations, such as needle-nose locking pliers, locking wrenches, C-clamp locking pliers and various shapes. They also come in many sizes, such as 5-inch, 6-inch, 7-inch, 8-inch, 9-inch, 10-inch, 11-inch, etc. The features of the locking pliers are as following:

The jaw is forged with chrome-vanadium steel or carbon steel as a whole, with good toughness.
Pressed steel plate handle, holding the object without deformation.
Heat treated adjusting rod, easy to adjust the best size and no deformation.
Serrated jaw, strong gripping force.
