Electric Digital Soldering Station, 90W
Original price was: $245.16.$73.99Current price is: $73.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |

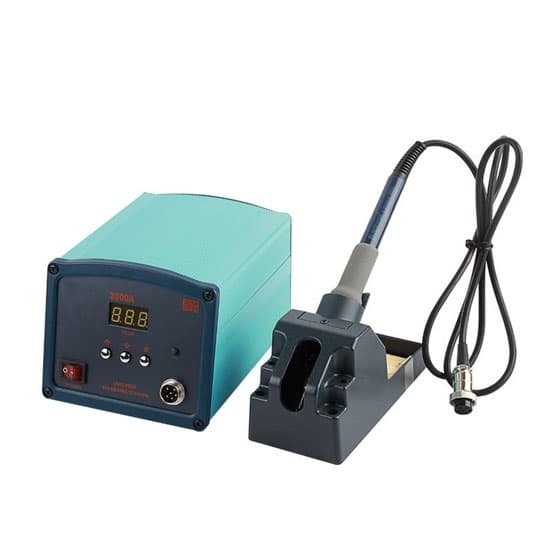

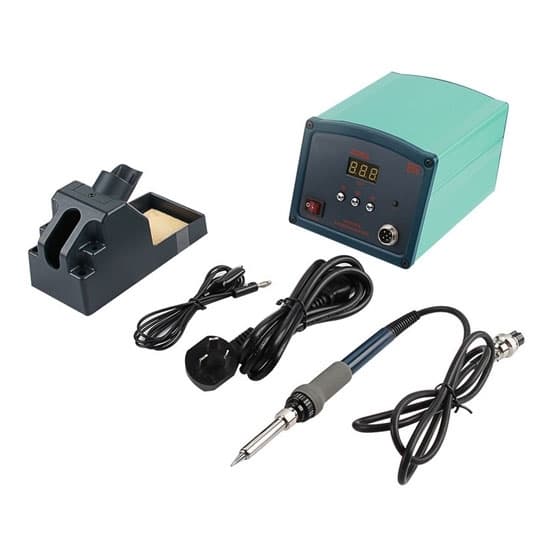

The 90W electric digital soldering station offers precise temperature control with a digital LCD display, making it ideal for electronics, jewellery making, and repairs. Compatible with 110V/220V power, it features an ergonomic design, automatic shut-off, overheat protection, and a safety bracket, ensuring reliable and safe operation for both beginners and professionals.
Specification
| Model | T-SS-2000A |
| Max Power | 90W |
| AC Voltage | 110V/220V |
| Output Frequency | 60Hz/50Hz |
| Output Voltage | 36V |
| Shell Material | Aluminum Alloy |
| Temperature Range | 180~450℃ |
| Temperatur Stability | ±2℃ |
| Tip to Ground Resistance | <2mV |
| Hand Piece Cord | 1.2m |
| Weight | 2.6kg |
| Dimensions | 165*130*105mm |
Soldering Station Features
1. The aluminum alloy case of the soldering station is resistant to falling and durable, and the wave pattern design increases the impact resistance and can prevent radiation damage generated inside the high frequency.
2. The equipotential is usually to avoid the electric shock hazard of the potential difference to the human body. The leakage potential of different electrical equipment is the same. Generally, the equipotential is directly grounded, which can effectively prevent static electricity from damaging the precision components.
3. The metal iron frame is made of aluminum alloy, which has excellent electric insulation and is equipped with a cleaning sponge and a clean steel ball inside.
4. The heat sink fan at the bottom of the soldering station is designed to provide strong heat dissipation and extend the life of the soldering station.
Tips: Key factors you should consider when choosing a soldering iron or station
- Power (Wattage)
Soldering Iron: 20W-40W for small electronics; 50W-60W for general use; 100W+ for heavy-duty tasks.
Soldering Station: 40W-100W is typical; higher wattage offers faster heat recovery. - Temperature Control
Fixed vs. Adjustable: Adjustable temperatures (200℃ to 480℃) offer flexibility, while digital stations provide precise control and easy monitoring. - Heat-up and Recovery Time
Choose an iron or station with quick heat-up times (10-20 seconds) and fast heat recovery for efficient work. - Tip Compatibility
Ensure the soldering iron or station supports interchangeable tips for different tasks. T12/T13 tips are popular for fast heat transfer. - Ergonomics and Safety
Look for a comfortable, heat-resistant handle for prolonged use. Safety features like automatic shutoff or anti-static protection are also important. - Power Supply
Choose between 110V or 220V, depending on your region’s voltage. Some stations offer dual-voltage for versatility. - Budget and Brand
Trusted brands like Weller, Hakko, and Aoyue offer quality, but budget options can work well for basic needs.
For precision and long-term use, a temperature-controlled soldering station is ideal, while a simple soldering iron works for casual tasks. Choose based on power, control, and ergonomics to suit your specific needs.
