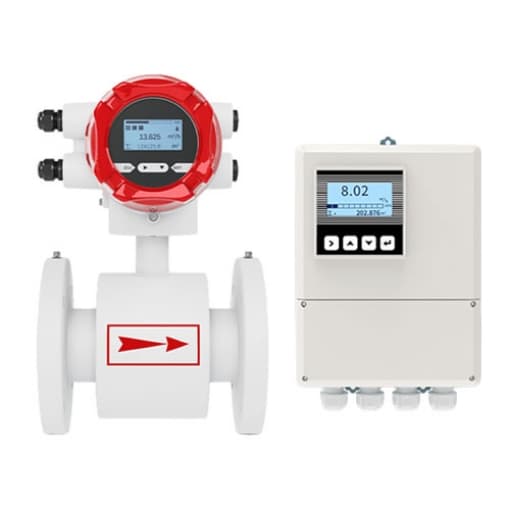

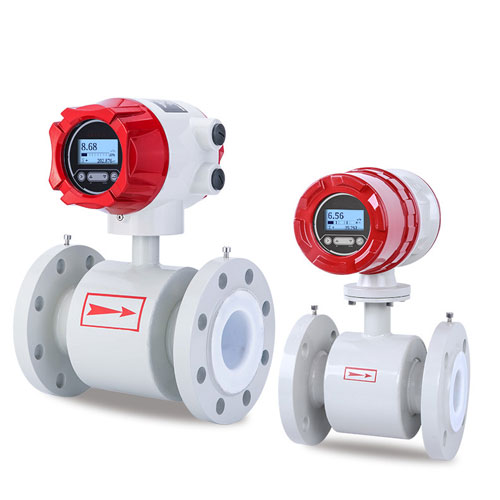

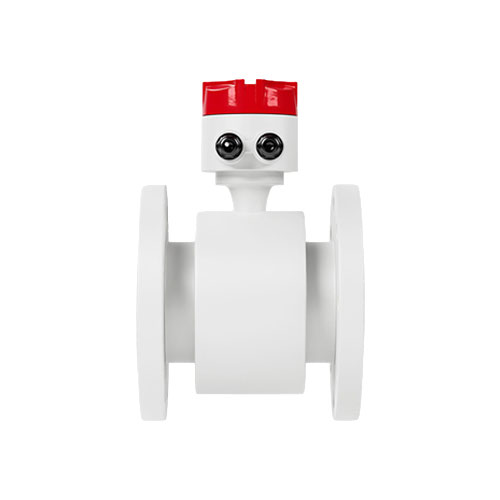

Electromagnetic Flow Meter, Split Type, DN15-DN250
Price range: $109.99 through $2,312.99
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
75
People watching this product now!
Description
Tool shop offers professional electromagnetic flow meters, designed for accurate measurement of acids, alkalis, solvents, oils, fuels, and chemicals. These mag meters are suitable for pipe sizes ranging from DN15 to DN200. This magnetic flow transmitter integrates easily into PLC and industrial automation systems. It is widely used in industries such as petroleum, chemical processing, urea production, and vinyl fiber manufacturing. The split-type electromagnetic flow meter features strong anti-interference capability and high measurement accuracy, ensuring stable and reliable operation even in harsh industrial environments.
Specification
| Model | T-EFM-MIK |
| Caliber | DN15-DN250 |
| Flange | Standard Carbon Steel (Optional stainless steel flange, contact customer service) |
| Rated Pressure Rating | DN15-DN50, PN<4.0MPa |
| DN65-DN150, PN<1.6MPa | |
| DN200-DN250, PN<1.0MPa | |
| High pressure can be customized | |
| Protection Class | IP68/IP67 (Contact customer service) |
| Medium Temperature | Sensor: -25~180℃; Converter: -10~80℃ |
| Buriability | Less than 5m (IP68 protected split sensors only) |
| Depth of Immersion | Less than 3m (IP68 protected split sensors only) |
| Sensor Cables | The standard cable is 10m; other cables are recommended to be customized to a maximum length of 20m. |
| Communication | RS485 |
| Outputs | Current (4-20mA), pulse, frequency, status switching |
| Communication Functions | Empty tube identification, electrode contamination |
| Graphic Display | Monochrome LCD with white backlight; size: 128*64 pixels |
| Display Functions | 2 measured value screens (measurement, status, etc.) |
| Maximum Measurement Error | ±0.3% of measured value (flow rate 1m/s); ±2mm/s (flow rate <1m/s) |
| Repeatability | 0.002 |
| Operating Environment | Temperature: -10℃ to 55℃ (for flowmeter sensor section: -10℃ to 60℃) |
| Storage Temperature: -40℃ to 65℃ | |
| Electrical Conductivity | Water: Minimum 20 μS/cm (for water conductive measurement) |
| Others: Minimum 5 μS/cm (for other conductivity measurements) | |
| Material | Sensor: Ferrite, Standard stainless steel |
| Power Supply | Voltage: 100-240VAC, 50/60Hz, 22VDC to 26VDC |
| Maximum Power: 15VA | |
| Power Cable: 0.5mm² Cu/AWG20 | |
| Output | Output Range: 4-20mA |
| Measurement Range: 20mA | |
| Lower Limit: 4mA | |
| Power Supply: 24VDC | |
| Load: < 750Ω | |
| Pulse and Frequency Output | Pulse width: 0.25ms to 100ms |
| Pulse frequency: 50% (max flow rate 5L) | |
| Frequency range: 5000 cps |
Electromagnetic Flow Meter Features
- Upgraded Fully Protected Converter: Enhanced anti-interference design improves signal stability for this electromagnetic flow meter transmitter, ensuring accurate data transmission in complex industrial environments.
- Instantaneous and Cumulative Flow Display: This magnetic water flow meter displays both real-time flow rate and cumulative flow, making it ideal for flow measurement and monitoring systems.
- Multiple Flow Units Available: This mag meter flow meter displays both real-time flow rate and cumulative flow, making it ideal for different mag flow applications.
- Bidirectional Flow Measurement: Accurately detects both forward and reverse flow, reducing installation constraints and adapting to various pipeline configurations.
- 4-20 mA Analog Output: Equipped with standard 4-20 mA output, this mag flow meter integrates seamlessly with PLCs and control systems.
- RS485 Modbus Communication: Built-in RS485 interface enables this smart electromagnetic flow meter to connect with SCADA and automation platforms.
- Three-Proof Protection Design: Features durable PTFE lining and an IP65-rated enclosure, effectively preventing detachment, edge deformation, and leakage, ensuring stable operation in harsh industrial environments.
- High Reliability & Ease of Use: Optimized structure combined with intelligent functions simplifies installation and system integration, improves usability, and ensures long-term stable performance in industrial applications
Electromagnetic Flow Meter Dimensions (Unit: mm)
| DN | a | ∅D | ∅Do | n∅A |
| 10 | 200 | 90 | 60 | 4*14 |
| 15 | 200 | 95 | 65 | 4*14 |
| 20 | 200 | 105 | 75 | 4*14 |
| 25 | 200 | 115 | 85 | 4*14 |
| 32 | 200 | 140 | 100 | 4*18 |
| 40 | 200 | 150 | 110 | 4*18 |
| 50 | 200 | 165 | 125 | 4*18 |
| 65 | 200 | 185 | 145 | 8*18 |
| 80 | 200 | 200 | 160 | 8*18 |
| 100 | 250 | 220 | 180 | 8*18 |
| 125 | 250 | 250 | 210 | 8*18 |
| 150 | 300 | 285 | 240 | 8*22 |
| 200 | 350 | 340 | 295 | 12*22 |
| 250 | 450 | 405 | 355 | 12*22 |
Electromagnetic Flow Meter Flow Rate
| Calibre DN | Flow Rate (m/s) | |||||||
| 0.1 | 0.2 | 0.4 | 0.5 | 1 | 10 | 12 | 15 | |
| Volume (m3/s) | ||||||||
| DN10 | 0.02827 | 0.0565 | 0.1131 | 0.1414 | 0.2827 | 2.827 | 3.39 | 4.24 |
| DN15 | 0.0636 | 0.127 | 0.25 | 0.318 | 0.636 | 6.362 | 7.632 | 9.54 |
| DN20 | 0.131 | 0.226 | 0.45 | 0.566 | 1.131 | 11.31 | 13.572 | 16.965 |
| DN25 | 0.176 | 0.35 | 0.71 | 0.8835 | 1.767 | 17.67 | 21.204 | 26.965 |
| DN32 | 0.2895 | 0.58 | 1.16 | 1.448 | 2.895 | 28.95 | 34.74 | 43.425 |
| DN40 | 0.4525 | 0.9 | 1.81 | 2.62 | 4.524 | 45.24 | 54.208 | 67.86 |
| DN50 | 0.707 | 1.414 | 2.83 | 3.535 | 7.069 | 70.69 | 84.36 | 106 |
| DN65 | 1.195 | 2.39 | 4.78 | 5.973 | 11.946 | 119.5 | 143.35 | 179.2 |
| DN80 | 1.81 | 3.62 | 7.24 | 9.048 | 18.1 | 181 | 217.2 | 217.2 |
| DN100 | 2.83 | 5.65 | 11.31 | 14.14 | 28.27 | 282.7 | 339.24 | 404.05 |
| DN125 | 4.42 | 8.84 | 17.67 | 22.09 | 44.18 | 441.5 | 530.16 | 662.7 |
| DN150 | 6.36 | 12.7 | 25.5 | 31.81 | 63.62 | 636.2 | 763.44 | 954.3 |
| DN200 | 11.3 | 22.6 | 45.2 | 45.55 | 113.1 | 1131 | 1357.2 | 1696.5 |
| DN250 | 17.7 | 35.4 | 70.7 | 88.36 | 176.7 | 1767 | 2110.4 | 2650.5 |
Electromagnetic Flow Meter Applications
Tips: Why is PTFE lining used in electromagnetic flow meters?
PTFE lining is applied in electromagnetic flow meters to better adapt to complex industrial conditions. It offers excellent corrosion resistance, effectively withstanding aggressive media such as strong acids and alkalis, thereby extending the service life of the magnetic water flow meter equipment. In addition, PTFE provides outstanding thermal stability, maintaining consistent electromagnetic flow measurement performance across a wide temperature range to ensure accurate measurement. Its smooth surface with a low friction coefficient helps reduce fluid resistance and prevents particle adhesion, minimizing the risk of clogging and making the flow meter more suitable for fluids containing suspended solids.
