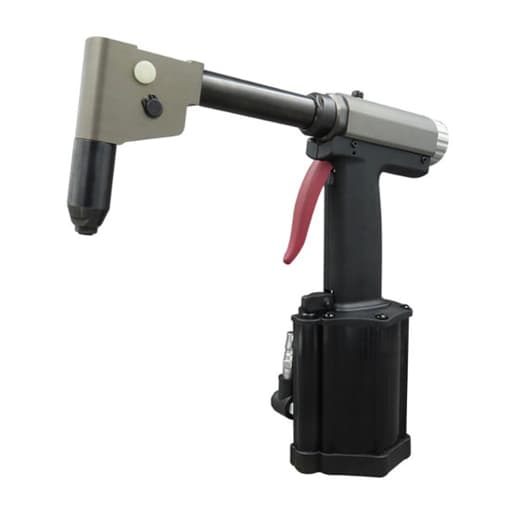

Name: Heavy Duty Air Hydraulic Riveter, 5/32" - 1/4"
Brand: Tool
SKU: 1184
Availability: InStock

Heavy Duty Air Hydraulic Riveter, 5/32″ – 1/4″

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

24 People watching this product now!

The original nozzle diameter of the heavy duty air hydraulic rivet gun is 1/4 inch (6.4 mm). A wrench, an oil injector and a rivet container are included in the package. When the stroke is getting shorter, you can refuel with the oil injector from the oil filling port.

Feature

The air rivet gun works is used for aluminum rivets and stainless steel rivets.
The head of the pneumatic pop riveter can be rotated 360 degrees, which helps you work in narrow space, corner and other areas that are difficult to reach.
An oil filling port on the air hydraulic rivet gun helps you refuel easily.
You can rotate the universal Joint according to what you need.
The ergonomic handle and trigger is labor saving and convenient to operate.

Specification

Model	T-KP-7162L
Rivet Diameter	Aluminum Rivet: 5/32″, 3/16″ 1/4″ (4.0mm, 4.8mm, 6.4 mm)
Rivet Diameter	Steel Rivet: 5/32″, 3/16″ (4.0mm, 4.8mm)
Power Source	Air Powered
Working Pressure	90 PSI (0.62 MPa)
Air Inlet Size	1/4 inch (6.35mm)
Maximum Stroke	20mm
Body Dimension	300mm *310mm
Weight	2.16kg
Package Included	1 PC Air Riveter 2 PCS Nozzles (5/32″, 3/16″) 1 PC Oil Injector 1 PCS Wrench 1 PC Rivet Container 1 PC Hanging Ring

Dimension

Details

Nozzle
Oil Filling Port
Rivet Container
Trigger
Ergonomic Handle
Universal Joint

Tips: How does a heavy duty air hydraulic riveter work?

The heavy duty air hydraulic riveter is designed for riveting objects without too much manual effort. It is an ideal fastening tool with industrial standard applied to from aircraft assembly to workshop and garage. A pneumatic rivet gun needs compressed air to work. It can grasp the pins of rivets firmly by compressed air to fasten and seal rivets. The bottom of rivets is thin enough to go through the objects. After that, aim the rivet to the object and press the starting switch. Then the mandrel of the rivet will be cut off and the rivet will be fixed on the object. The air riveter should be carefully oiled to ensure that it is lubricated before use.
