62 People watching this product now!

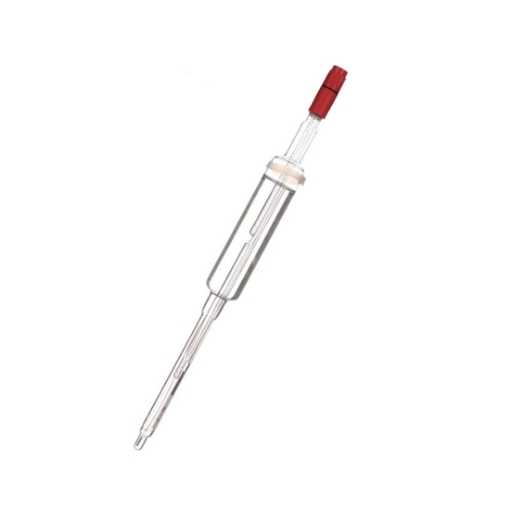

High temperature pH electrode measures 0-14 pH with temperature resistance up to 145℃ and supports optional compensation (Pt100, Pt1000, or NTC30k). It operates at ≤0.6 MPa and comes in sizes of 12mm*120, 150, 250, or 450mm. Made of durable glass, it includes a pressurizable reference liquid, ceramic diaphragm, and FDA-certified silver chloride electrode. Ideal for precise pH monitoring in high-temperature environments like pharmaceuticals, brewing, and desulphurization.

Specification:

Model	T-PHME-pH-5806
Measurement Range	0-14 pH
Applicable Temperature	Temperature Resistance: 0-145℃ / Measurement Range: 0-145℃
Temperature Compensation	Pt100, Pt1000, NTC30k (optional)
Pressure Range	≤ 0.6 MPa
Connector	VP, S8, K8S
Size	12mm*120, 150, 225, 325mm
Outer Material	Glass pH Electrode
Reference System	Gel electrolyte, ceramic diaphragm with silver ion capture trap
Sanitation Certification	FDA certified

Feature

Designed for easy submersible installation.
Real-time pH measurement in water with high precision and stability.
Resistant to contamination and interference, suitable for complex environments.
High pressure and temperature resistance, ideal for extreme conditions.
Equipped with a built-in temperature sensor for accurate measurement with temperature compensation.
Fast response with precise measurement results.
Wide application range, suitable for high-temperature environments such as pharmaceuticals, brewing, and desulphurization.

Tips: What should I do if the electrode’s readings become inaccurate?

If the electrode’s readings become inaccurate, first ensure that it has been cleaned properly, and check for any contamination on the glass bulb. You should also recalibrate the electrode regularly using standard buffer solutions. If these steps don’t resolve the issue, the electrode may need replacement due to wear or damage.
