Name: Pneumatic Pop Rivet Gun, 3/32" - 3/16", 85 PSI
Brand: Tool
SKU: 1180
Availability: InStock

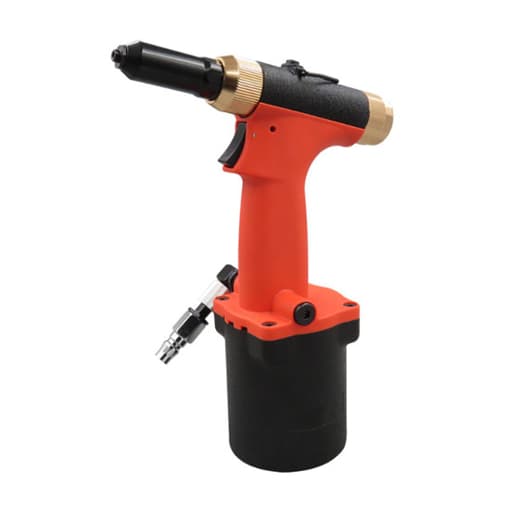

Pneumatic Pop Rivet Gun, 3/32″ – 3/16″, 85 PSI

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

53 People watching this product now!

The original nozzle of the pneumatic pop rivet gun is 3/16″ (4.8mm). 3/32″ (2.4mm), 1/8″ (3.2mm) and 5/32″ (4.0mm) nozzles are included in the package. You could replace different sizes of nozzles according to the diameter of rivets. 2 PCS combination wrenches are included in the package to help you change the nozzle.
Our low price air powered hydraulic riveter is a professional fastening tool for plate metals, pipe materials, cabinets and cases. The rivet tool is as well as widely used in home decoration, luggage production, automobile manufacture, and electrical appliance assembly.

Specification

Model	T-PPRG-316
Rivet Capacity	3/32″, 1/8″, 5/32″, 3/16″ (2.4mm, 3.2mm, 4.0mm, 4.8mm)
Power Source	Air Powered
Working Pressure	85 PSI (0.6 MPa)
Air Inlet Size	1/4 inch (6.35mm)
Air Consumption	5 CFM
Pulling Power	18000N
Maximum Stroke	20mm
Body Dimension	190m * 235mm
Weight	1.08kg
Package Included	1 PC Pneumatic Riveter 3 PCS Nozzles (3/32″, 1/8″, 5/32″) 1 PC Oil Injector 1 PC Oil 2 PCS Combination Wrench 1 PC Hex Key

Dimension

Details

Nozzle
Oil Filling Port
Starting Switch
Ergonomic Handle
Air Source Switch
Universal Joint
Air Outlet
Air Cylinder

7 tips for using a pneumatic pop rivet gun

Before using a pneumatic pop rivet gun, inject a small amount of lubricating oil into the air inlet in order to extend its working life.
Keep the specified air pressure. The air pressure below 0.6MPa (85 PSI) will reduce the power of the air rivet gun and decrease in work efficiency.
Press the starting switch or trigger only after the rivet firmly on the nozzle. Otherwise, the piston will produce back and forth movement and hit the shell, so that the pneumatic riveter damage.
Hold ergonomic handle with right hand, and press the starting switch with the index finger to use the air rivet gun. The compressed air size can be adjusted with the starting switch to ensure it works steadily.
Riveting different sizes of rivets must use corresponding size nozzles. The nozzle and the rivet don’t match, which not only decreases in work efficiency, but also damages the air riveter.
Don’t press the starting switch without rivets in use to avoid damaging the air rivet tool.
Strictly prohibit the pneumatic rivet gun against people.
