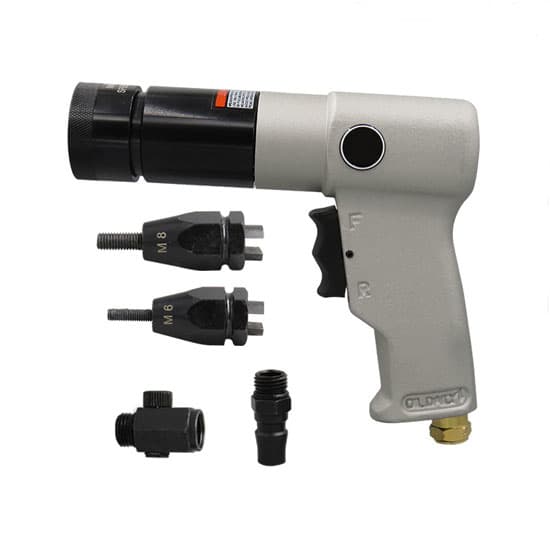

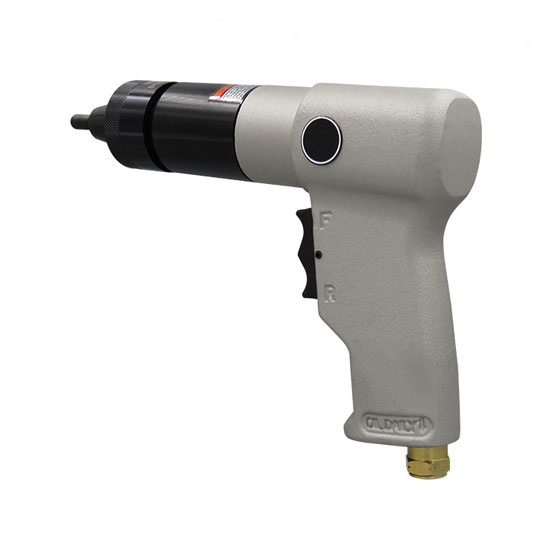

Pneumatic Rivet Nut Gun, M6/M8
Original price was: $174.63.$52.99Current price is: $52.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
Pneumatic rivet nut gun we provide can drive M6, M8 threaded size aluminum and iron rivet nuts to work. But it is not recommended to spin the stainless steel nutserts. Designed with self-locking collet, the air rivnut tool is simple and convenient to operate, which helps you improve work efficiency. It structures with ergonomic handle and starting switch, allowing you feel comfortable to hold. It is used for riveting all kinds of sheet metals, plastic pipes, equipment cabinets and other thick material.
Specification
| Model | T-PRNG-M68 |
| Thread Size | M6/M8 |
| No Load Speed | 600rpm |
| Working Pressure | 0.6 – 0.8MPa |
| Air Consumption | 5CFM |
| Air Inlet Size | 1/4 inch |
| Body Dimension | 220 * 155mm |
| Weight | 1.3kg |
Details
Tips: How to Maintain a Pneumatic rivet nut gun?
1. The pneumatic rivet nut gun requires compressed air to work, working pressure is generally 0.6 – 0.8MPa. Too high or too low pressure can damage the performance and the service life of the air rivet nut tool.
2. Before use, it is better to fill a few drops of lubricating oil into the air inlet, so as to lubricate fully the pneumatic motor inside the air nut riveter. Keep the compressed air dry.
3. Do not arbitrarily remove the parts of the air rivnut setting tool to operate, because it will cause accidents and damage to the air tool.
4. Be sure to follow all the rules and instructions when you operate the pneumatic rivet nut gun and other air tools.
5. Work with the air nut riveter of the right size.
