Portable Hydrogen Sulfide (H2S) Gas Monitor, 0 to 200/500/1000 ppm
Price range: $47.99 through $1,352.31
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
37
People watching this product now!
Description

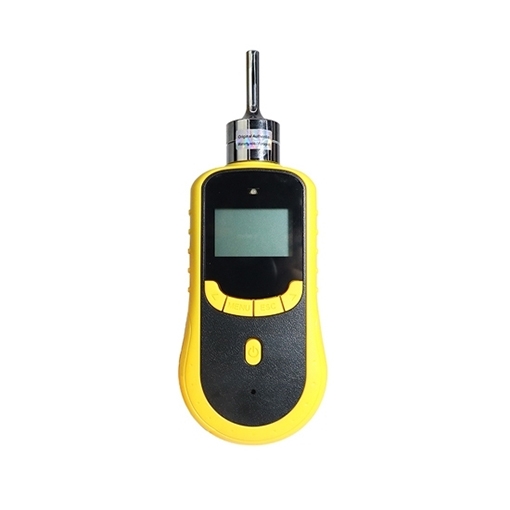

Handheld hydrogen sulfide (H2S) gas detector with pump suction sampling, flow rate up to 750ml/min and optional detection range (refer to the table). Its electrochemical detection principle ensures high accuracy and fast response time. H2S gas monitor is equipped with high-capacity data logging function and supports sound, light and vibration alarms. LCD dot-matrix display supports multi-language switching.Built-in 3.7V rechargeable Li-Ion battery with up to 100 hours of battery life.
Specification
| Model | GD200-H2S |
| Sampling Method | Pump type, flow rate can be up to 750ml/min |
| Detection Principle | Electrochemistry |
| Gas | Hydrogen Sulfide (H2S) |
| Range (Optional) | 0 to 10 ppm (for atmosphere), 0 to 50 ppm, 0 to 100 ppm, 0 to 200 ppm, 0 to 500 ppm, 0 to 1000 ppm |
| Resolution | 0.001ppm (0-10ppm), 0.01ppm (0-50/100/200ppm), 0.1ppm (0-500ppm), 1ppm (0-1000ppm) |
| Accuracy | ≤±3% F.S. |
| Responce Time | ≤10s |
| Repeatability | ≤±1% |
| Recovery Time | ≤10s |
| Linearity Error | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Data Logging (Optional Function) | High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.) |
| Alarms | Sound, light and vibration |
| Display | LCD dot matrix display |
| Language | Chinese/English |

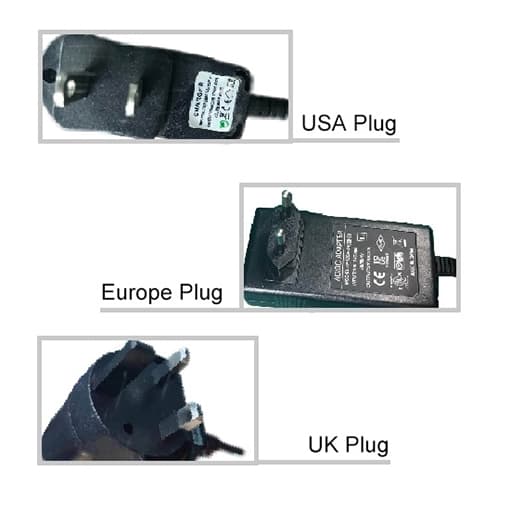

| Battery | 3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug) |
| Operating Time | 100h (Pump off) |
| Communication | Mini USB interface supports standard MODBUS communication protocol |
| Explosion-proof Grade | Ex ia llC T4 |
| Case Material | ABS+PC |
| Protection Grade | IP66 |
| Certification | CE, ATEX |
| Operating Temperature | -20℃~50℃ |
| Operating Humidity | 0~95%RH (non-condensing) |
| Operating Pressure | 0.8~1.2bar |
| Dimension | 205*75*32mm |
| Weight | 300g |
| Warranty | 12 months |

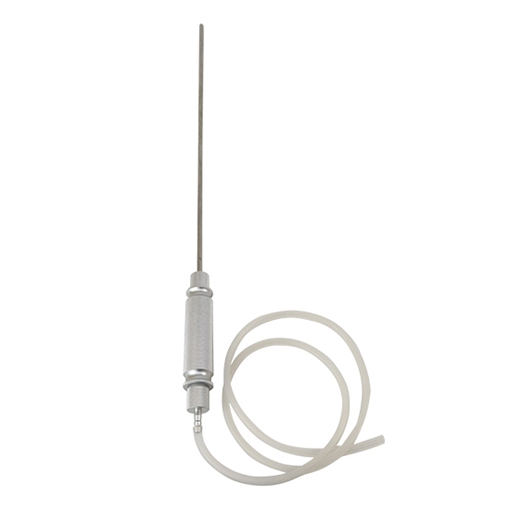

| Extension Probe | About 480mm (Total Length), About 300mm (Probe Head) |
| Accessories (Optional) | Calibration kit – gas pressure regulator (calibration gas cylinder NOT included)
• Body Material: Stainless steel |
Portable Gas Monitor User Manual
- Tool Gas Monitor User Manual.pdf
- Tool Gas Monitor Data Downloading Operation Instruction.pdf
Communication Protocol
- Tool Handheld Gas Monitor Communication Protocol V1.0.pdf

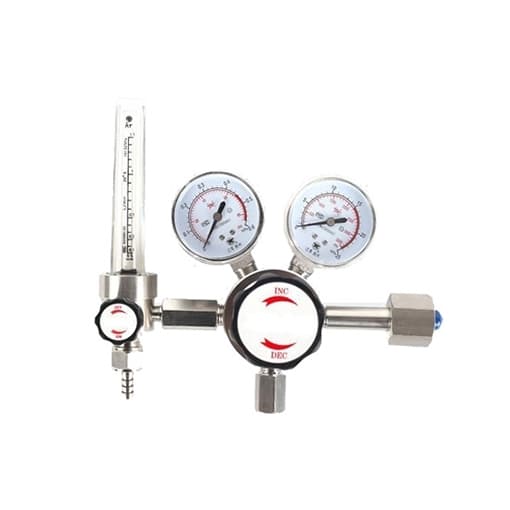

Portable Gas Monitor Calibration Accessories – Gas Pressure Regulator
- Tool Single Stage Pressure Regulator User Manual
Gas Detector Software
- Tool Portable Gas Monitor DataExport Software
Portable H2S Gas Monitor Features
- Original imported high-precision sensors to ensure the accuracy and reliability of the test results.
- Fast data transfer via USB interface with optional download and print functions.
- Multi-functional display interface with optional display of gas type, concentration, maximum value, local time and ambient temperature.
- Operation interface with multi-language support, easy switching and friendly user experience.
- Built-in miniature sampling pump, suction power can be adjusted in ten gears, and with explosion-proof qualified certification, excellent safety performance.
Gas Monitor Functions
- Real-time monitoring of gas concentration in the environment or confined space, with automatic alarm for exceeding the standard.
- Built-in self-calibration function and zero calibration function ensure accurate and reliable monitoring.
- One key to restore the factory settings, to avoid the trouble caused by misoperation.
- Equipped with temperature and pressure compensation function, adapting to gas monitoring under different environmental conditions.
- Dual-stage sound and light alarm system, alarm point can be customized, flexible response to various situations.
- Built-in high-capacity lithium polymer rechargeable battery, providing long life.
- Adopt pump suction sampling mode, adjustable suction force to ensure accurate sampling.
- Made of special engineering plastics with anti-slip, waterproof, dustproof and explosion-proof features.

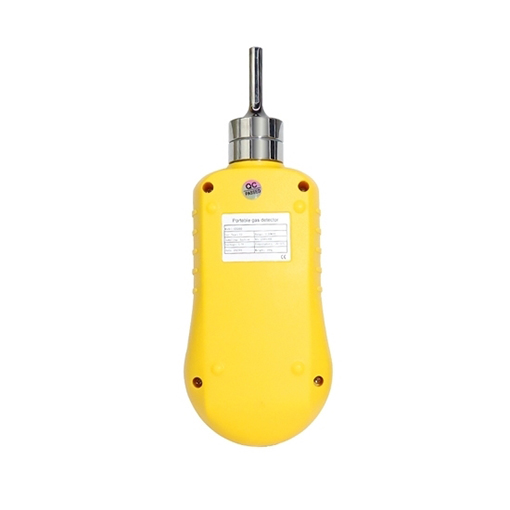

Portable Hydrogen Sulfide Gas Monitor Details
Applications
Tips: What should I pay attention to when choosing a portable hydrogen sulfide (H2S) gas monitor?
- Measurement Range: Ensure that the range of the monitor meets the needs of your application.
- Accuracy and Calibration: Choose a device with self-calibration and calibration features to improve measurement accuracy.
- Alarm Function: Make sure the H2S gas monitor is equipped with sound and light alarm function and the alarm point is adjustable.
- Battery Life: Choose a high-capacity battery to ensure long-time use.
- Environmental Adaptability: choose gas detector with temperature and pressure compensation function to adapt to different working environments.
- Shell Durability: Ensure that the shell is waterproof, dustproof, explosion-proof and non-slip to enhance safety and durability.
