Name: Portable Online Density Meter for Liquid, 0~3.0g/cm&#179;
Brand: Tool
SKU: 1378
Availability: InStock

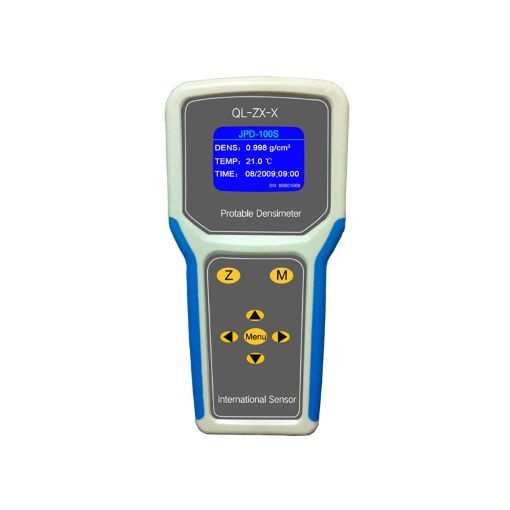

Portable Online Density Meter for Liquid, 0~3.0g/cm³

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

20 People watching this product now!

Portable online density meter for liquid has high precision imported density sensor, stable performance and is easy to use. It is widely used and can remembers the most recent 200 sets of measured data.

Specification

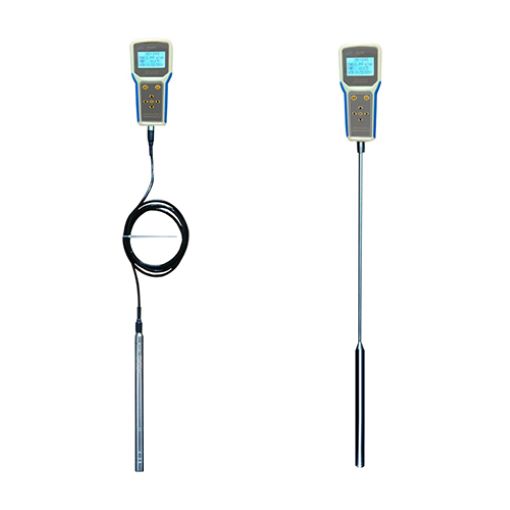

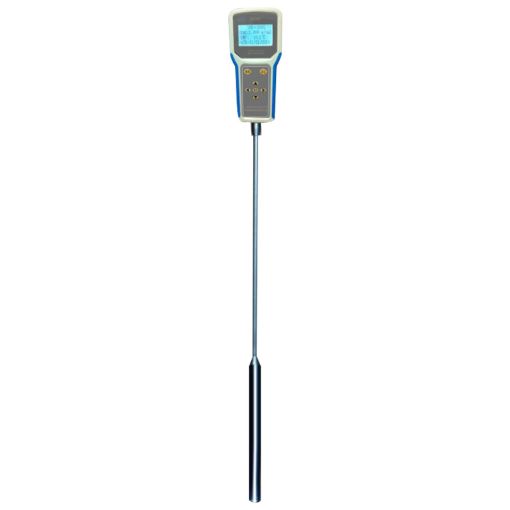

Model	QLZX-X (Cable type)	QLZX-G (Pole type)
Measure depth	300mm~25.0m	190mm~670mm
Measurement span	Density0~3.0g/cm³, temperature-25~110℃
Accuracy	Density±0.001g/cm³, temperature±0.5℃
Probe outer diameter	P25mm
Liquid measurement depth	Minimum measurement depth 190 mm, maximum measurement depth 25 meters
Instrument box	1m
Ambient temperature	(0~85)℃
Ambient humidity	(5~90)%RH
Power supply	24VDC (VHZ)
Working voltage	Powered by rechargeable batteries (4 No. 5 batteries)
Display	Color screen digital display, showing density value, temperature, and time/date
Memory storage	200 sets of measurement data
Measurement method	Handheld vertical measurement
Measuring Principle	Differential pressure method

Application

This online density meter for liquid is a portable device used to measure density indicators of various liquids or liquid mixtures. It has been widely used in various industries such as water treatment, petrochemicals, food processing, pharmaceuticals, dairy products, archaeology, mining, and shipping.

Working principle

The portable online density meter for liquid mainly consists of built-in density sensors, temperature sensors, signal lines, intelligent controllers, etc. It measures the density and temperature signals of the liquid through a built-in sensor probe. The signals are transmitted to the intelligent controller through a signal line, and the raw signals are processed into multiple parameters such as density and temperature values that can be read through signal conditioning circuits, multi-channel AD conversion circuits, and CPU intelligent processing units. It also remembers the most recent 200 sets of measured data.
