Name: Rotary Hammer with SDS Drill, 800W, 26mm
Brand: Tool
SKU: 64
Availability: InStock

Rotary Hammer with SDS Drill, 800W, 26mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

71 People watching this product now!

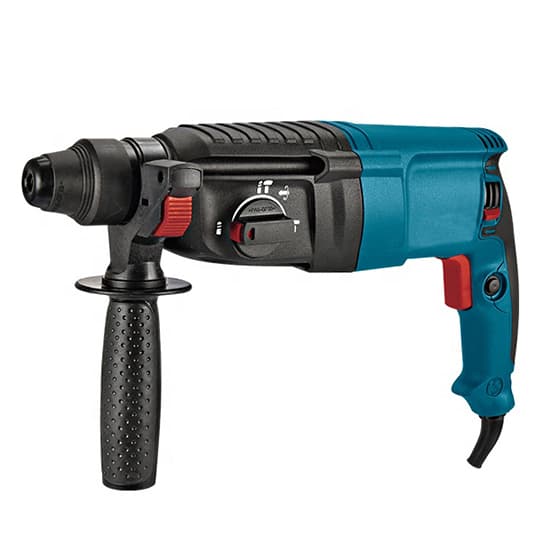

Rotary hammer is a functional power tool with SDS drill bit. Electric drill, electric hammer and electric pick are switchable. Applicable materials are metal, wood, concrete, ceramic, etc.

Specification

Model	T-RTHM-6026C
Drilling Diameter	26mm
Function	hammering, drilling, demolition
Voltage	230V
Frequency	50Hz
Rated Power	800W
No-load Speed	0-900rpm
Hammering Rate	0-4000bpm
Impact Energy	3.0J
Weight	3.05kg

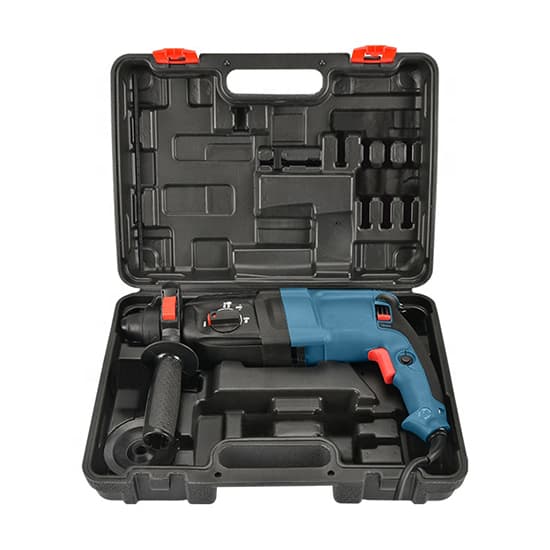

Standard Accessories	3 SDS drill hammer bits (8, 10, 12*150mm), ruler, carbon brush, dust cover, tool box

Features

3 functions switchable. Positive and negative rotate.
Electric drill function for drilling of metal, wood, ceramics, etc.
Electric hammer function for breaking in wall demolition, concrete, engineering construction, interior decoration, etc.
Electric pick function for demolition in wall slotting, ground chiseling, trench wiring, etc.

Rotary Hammer Structure Diagram

Hammer Bit Installation

Insert hammer bit into the chuck and rotate it to an appropriate angle. (Align the short groove to round steel ball)
Insert hammer bit down, and you will hear a click to complete installation.
Disassemble drill bit: pull down the lower part of chuck, take out hammer bit.

Tips: Precautions when using rotary hammer.

After staring the rotary hammer, run it without load for a period of time, check and confirm that the mechanical linkage is flexible and unimpeded. Do not use excessive force when working.
Hold handle firmly when operating rotary hammer. Use moderate force and avoid shaking. If the speed drops sharply, reduce force to prevent the motor from overloading.
Pay attention to avoid the steel bars in concrete during operation.
Rotary hammer is a 40% intermittent work system, it should not be used continuously for a long time.
When the working aperture is more than 25mm, a stable working platform should be set up with guardrails around.
Pay attention to the sound and temperature rise during operation, and immediately stop the machine for inspection if abnormality is found.
When operating rotary hammer, do not touch the cutting tools, molds and grinding wheels with hands. If it is found to be blunt or damaged, stop it immediately for repair or replacement, and then continue to work.
