Name: Single Phase DIN Rail Digital Energy Meter, LCD Display
Brand: Tool
SKU: 76
Availability: InStock

Single Phase DIN Rail Digital Energy Meter, LCD Display

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

79 People watching this product now!

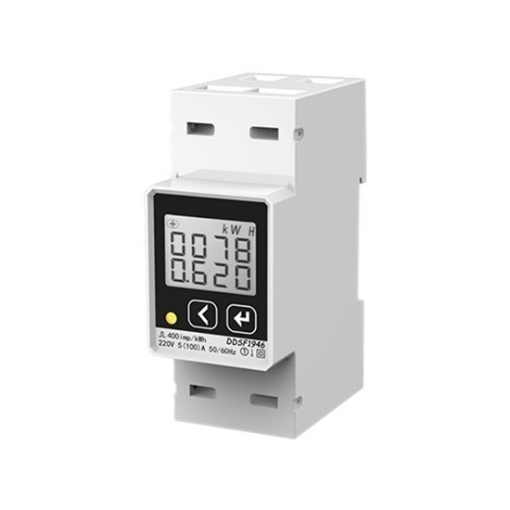

Single phase DIN rail energy meter with 4-digit LCD display, low voltage current transformer (LVCT) connection is more compact, with lower installation cost and safer environment. The single-phase energy meter adopts intelligent metering chip, with high accuracy, small error, and no adjustment required for long-term use. The operation interface of the energy meter is simple and easy to use. It combines excellent performance and easy installation to provide cost-effective power monitoring applications.

Specification

Model	T-DDS1946-2P
Accuracy Grade	Grade-1 accuracy for active energy
Phase	Single phase (2 wire)
Number of Poles	2P
Rated Voltage	230V
Current Direct Input	5(100)A
Frequency	50/60Hz
Display Mode	LCD display
Display Digits	4
Energy Pulse	1 energy pulse output, pulse width (80±20%) ms
Measurement Range	Voltage/Current/Active power/Power factor/Frequency
Communication Interface	RS485, Modbus-RTU protocol, 2 wire, up to 9600bps
IP Protection	IP54 (panel) /IP20 (case)
Certificate	CE/ ISO/ MID
Warranty Period	12 months
Dimension	366390mm
Weight	1.0kg
Installation	Din rail 35mm
Work Temperature	-10℃~55℃
Storage Temperature	-25℃~70℃

Dimension (unit=mm)

Wiring

Tips: What should I pay attention to when installing an energy meter?

Choose a suitable location: Install in a dry, well-ventilated place without corrosive gases, avoid direct sunlight and high temperature. Keep away from flammable and explosive items, and ensure that there is no strong magnetic field or strong electric field interference around.
Wiring specifications: Use standard wires, and the cross-sectional area should meet the load requirements. Ensure that the wiring terminals are tight to avoid looseness or poor contact.
Debugging and inspection: Confirm that the wiring is correct, without short circuit or open circuit. Observe whether the energy meter is running normally and whether the display is clear. Use professional equipment to detect the error of the energy meter to ensure that it meets the standards.
Maintenance and care: Check the wiring and operating status regularly, and deal with abnormalities in time. Clean the energy meter regularly to prevent dust from affecting operation.
