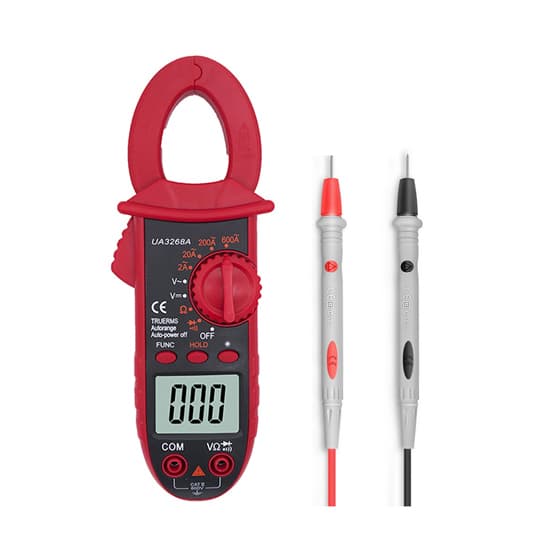

Smart Clamp Meter, Auto-ranging/NCV Test/Overload Protection
Original price was: $74.75.$22.99Current price is: $22.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
The smart clamp meter is powered by two AAA batteries and has a maximum jaw opening size of 28mm, making it suitable for various wire sizes. It operates in temperatures from 5℃ to 35℃ and can be stored between -10℃ to 50℃. The device is equipped with essential functions like data hold, continuity test buzzer, and an automatic power-off feature after 15 minutes of inactivity.
Specification
| Basics | Model | T-CM-UA3268A | |
| Weight | 160g | ||
| Size (L*W*H) | 185*51*25mm | ||
| Display | 4 digit LCD display | ||
| Maximum display value | 1999 | ||
| Power supply | DC 3V, 2 AAA batteries | ||

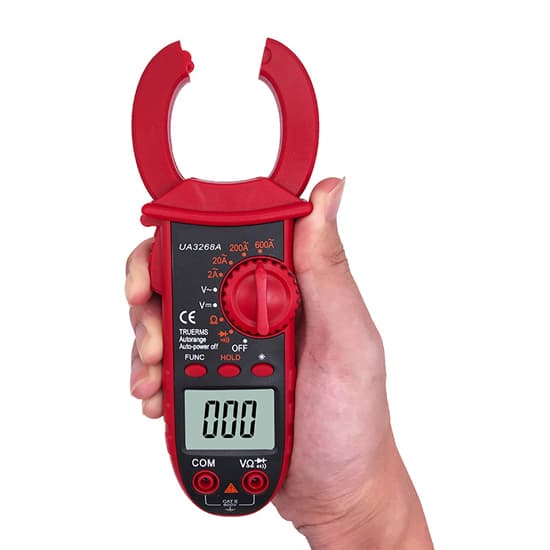

| Maximum jaw opening size | 28mm | ||
| Woring environment | Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75% | ||
| Storage temperature | -10℃~+50℃ (14℉~122℉) | ||
| Accessories | A pair of test probes, a user manual, 2 AAA batteries | ||
| Functions | Item | Range | Accuracy |
| AC current | 600A | ±(2.5%+5 digits) | |
| DC voltage | 600V | ±(1.0%+5 digits) | |
| AC voltage | 600V | ±(1.5%+5 digits) | |
| Resistance | 2MΩ | ±(1.0%+4 digits) | |
| Special functions | TRMS | True RMS measurement for sine wave signal | |
| Diode test | Display forward voltage value of diode | ||
| On-off buzzer | Continuity test buzzer | ||
| Data hold | Hold the reading when taking a measurement | ||
| Automatic power off | Automatic power off when 15 minutes no operation | ||
| Overload protection | Overload protection for 100% range | ||
| Range selection | Manual range selection | ||
| Backlight | Backlight for LCD display | ||
Features
- Comprehensive Measurement Functions: The clamp meter can measure DC voltage, AC voltage, AC current, and resistance, making it versatile for various electrical testing needs.
- Auto-ranging Capability: Automatically selects the appropriate measurement range, ensuring accuracy and ease of use without manual adjustments.
- Non-Contact Voltage (NCV) Testing: Provides a safe way to detect the presence of voltage without direct contact, reducing the risk of electrical shock.
- Overload Protection: Equipped with full-scale overload protection to prevent damage to the meter and ensure user safety during high-load measurements.
- Durable and Ergonomic Design: Features a wear-resistant silicone outer shell that offers anti-slip and anti-drop protection, enhancing durability and user comfort.
- Backlit LCD Display: The meter comes with a clear, backlit LCD display, making it easy to read measurements even in low-light conditions.
- Data Hold Function: Allows users to lock the current measurement reading on the display, making it convenient for recording and analyzing data.
Structure
Tips: Why is the NCV (Non-Contact Voltage) function not detecting voltage?
If the NCV function isn’t detecting voltage, it could be due to the NCV mode not being activated or the sensor being faulty. Ensure that the meter is set to the NCV mode and that the sensor is placed close enough to the wire or electrical source you are testing. If the meter still doesn’t detect voltage, try testing it on a known live circuit to confirm functionality. If the NCV feature fails to work on a live circuit, the sensor might be defective and may require repair or replacement.
