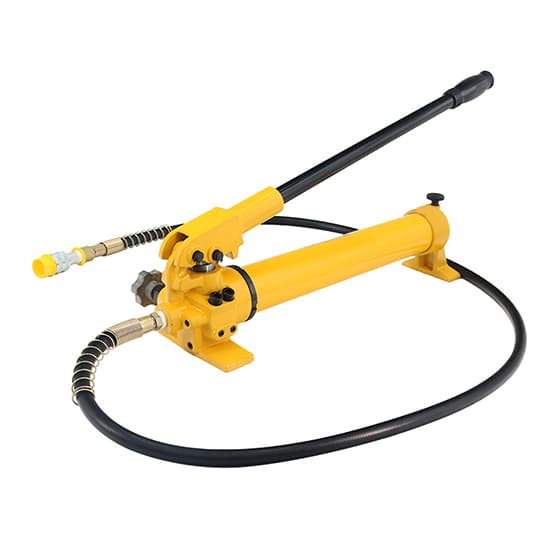

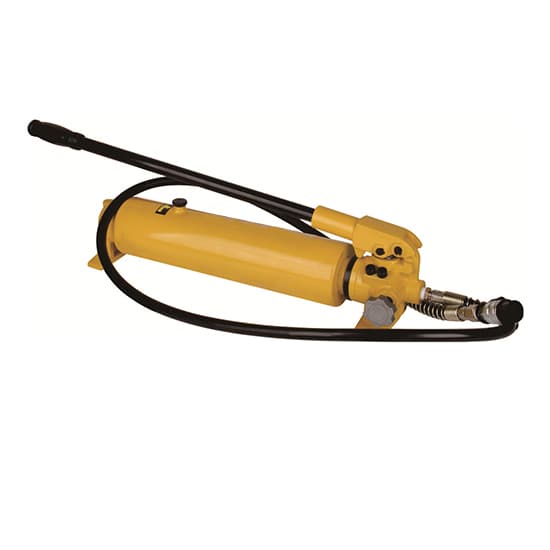

Name: 10,000 psi Hydraulic Hand Pump, 1200cc Oil Reservoir
Brand: Tool
SKU: 1297
Availability: InStock

10,000 psi Hydraulic Hand Pump, 1200cc Oil Reservoir

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

68 People watching this product now!

Double-acting hydraulic hand pump is a manual portable tool, oil output is 2-stage of high and low pressure. It can be used with hydraulic pliers, cutting machine, bending machine, punching machine, Jack and other split hydraulic tools.

Specification

Model		T-CP-700	T-CP-700B	T-CP-700A
Max. Output Pressure	kg/cm²	700
	psi	10,000
	bar	689
Pressure Rating	Low Pressure	20 kg/cm²
	High Pressure	700 kg/cm²
Oil Amount/min	Low	13cc
	High	2.3cc
Oil Reservoir Capacity		700 cc	1,200 cc	3,200 cc
Default Oil Pipe Length		2m	2m	2m
Size	mm	660180180	750180270	770180180
	inch	2677	29.5710.6	3077
Weight		9.5 kg	10 kg	12 kg

Features

The hydraulic hand pump has high and low pressure 2-stage design, with fast oil delivery speed. The working pressure and function are the same as the electric pump.

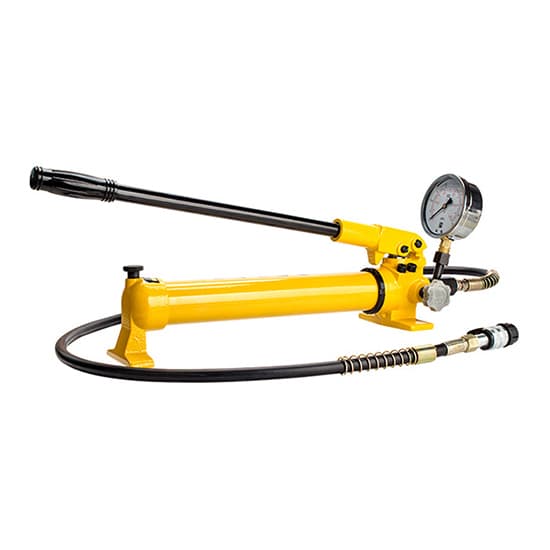

Manual operation mode, oil pipe can be lengthened, with quick joint, pressure gauge (optional).
Pressure can be stopped in the middle of operation, built in high-pressure safety protection hydraulic valve.
Oil tube joint is adapted to PT3/8″ thread.

Hydraulic Hand Pump Structure Diagram

Hydraulic Hand Pump Usage

Connect the high-pressure oil pipe female joint of the main pump and the male joint of the sub-machine oil pressure cylinder, and tighten them.
Tighten the oil return switch of the pump clockwise, shake the handle repeatedly to advance piston until the work is completed.
After completion, loosen the oil return switch counterclockwise to reset the piston.

Tips: Solutions to the failure of oil output and pressure for hydraulic hand pump.

Malfunction	Cause	Solution
When using hydraulic hand pump, there is a sudden drop in oil delivery and pressure.	1. The high-pressure spring or the low-pressure valve spring is permanently deformed or broken.	Replace with a new high-pressure valve spring or low-pressure valve spring.
	2. The low-pressure valve contains impurities, which destroys the sealing performance of check valve and low-pressure valve.	Disassemble the oil pump and clean it with gasoline. Then reassemble oil pump and inject clean oil.
Delivery volume of the oil pump is reduced, and the pressure is insufficient or no pressure at low pressure.	1. Low-pressure valve spring is damaged or loses its elasticity.	Replace the low-pressure valve spring.
	2. Low-pressure valve port is slightly worn.	Correct the valve port.
