Name: 750W Hydraulic Electric Pump, 10000 psi
Brand: Tool
SKU: 1291
Availability: InStock

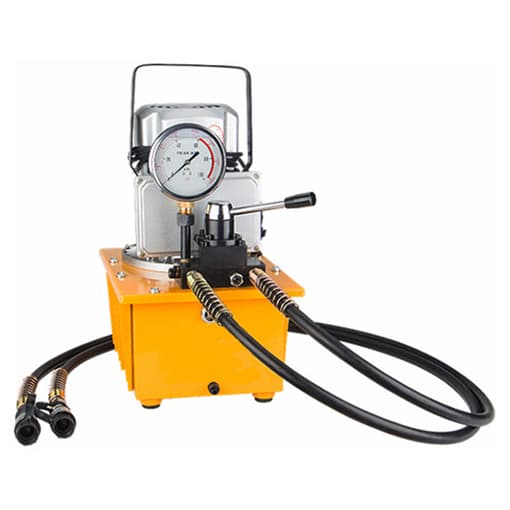

750W Hydraulic Electric Pump, 10000 psi

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

77 People watching this product now!

The hydraulic electric pump has a single-acting loop valve, small size for portable use. The electric over hydraulic pump can be used with punch machine, cutting machine, bending machine, cylinder, pipe benders, hole digger, cable cutter, crimping tool, etc.

Specification

Model	T-DYB-63A
High Pressure	10,000 psi (70Mpa)
High Pressure Flow Rate	0.9L/min
Motor Power	750W
Voltage	110V, 380V
Frequency	50Hz/60Hz
Speed	1400 rpm
Oil Storage Capacity	7L
Oil Type	≤15# hydraulic oil
Weight	21.4 kg

Structure Diagram of Hydraulic Electric Pump

Dimension Drawing of Hydraulic Electric Pump (Unit: mm)

Tips: Hydraulic electric pump troubleshooting.

Malfunctions	Causes	Solutions
Motor abnormal	1. Power supply fails	Check power supply and switch
Motor abnormal	2. Poor switch contact	Check power supply and switch
Pressure abnormal	1. High pressure overflow maladjustment	1. Adjust the high pressure relief valve to 70MPa
	2. Hydraulic oil leak	2. Check and repair, replace the sealing ring
	3. Plunger pair wear	3. Replace the plunger pair
Insufficient flow	1. Seals is damaged	1. Replace the seals
Insufficient flow	2. Improper selection of hydraulic oil	2. Replace the hydraulic oil according to instruction manual
