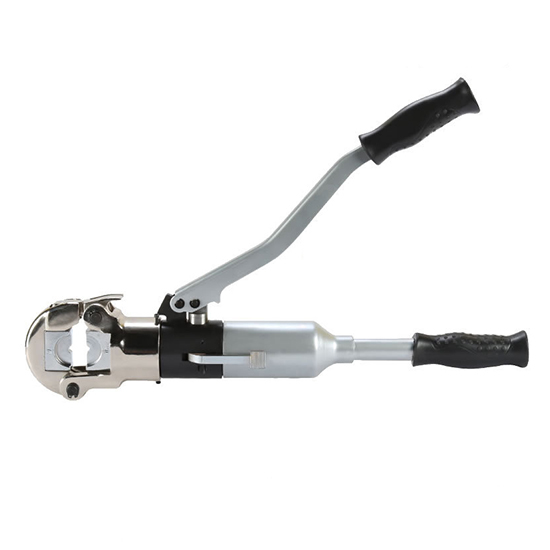

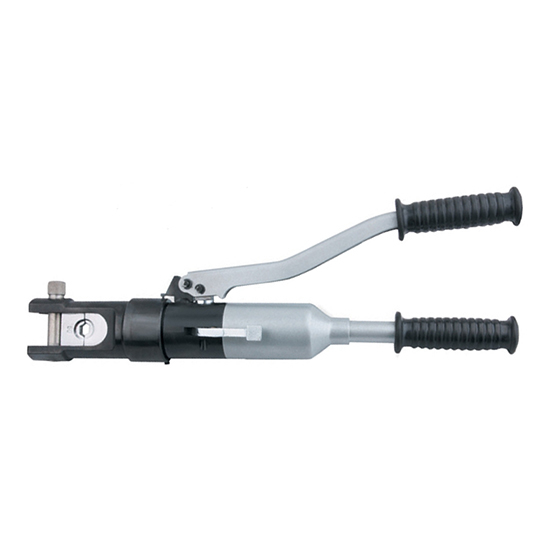

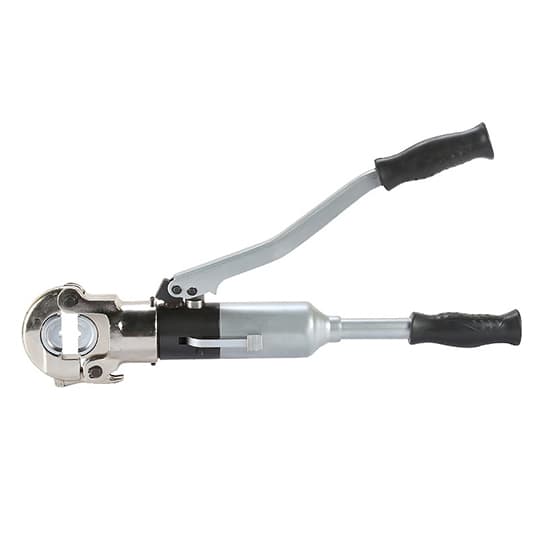

Name: Hydraulic Crimping Pliers, 16~240mm&#178;, 10 Dies
Brand: Tool
SKU: 1272
Availability: InStock

Hydraulic Crimping Pliers, 16~240mm², 10 Dies

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

53 People watching this product now!

High quality hydraulic crimping tool for sale, with wholesale price, free shipping. The hydraulic crimping plier features 11 ton crimping force, various crimping range, 16mm stroke and 9-10 crimping dies and is suitable for crimping cable, copper / aluminum terminal and hose for users. Convenient and safe to use.

Specification

Model	T-QZD-240A	T-QZD-300A	T-QZD-400A
Crimping Range	16~240mm²	16~300mm²	16~400mm²
Crimping Force	11 Ton	11 Ton	11 Ton
Stroke	16mm	16mm	16mm
Overall Length	500mm	500mm	500mm
Weight	4.5 kg	5.0 kg	6.5 kg
Die Quantity	10	11	9
Crimping Dies Configuration	16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm²	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²	50, 70, 95, 120, 150, 185, 240, 300, 400 mm²

Features

Durable Material. The hydraulic crimper is made of superior material with high strength & good toughness and 8 sets of hexagon crimping dies are made of hardened steel with chrome finish, providing strong stability for longer service life.
Wide Application. The hydraulic crimping tool features 11 ton maximum crimping power, best for crimping cable, copper / aluminum terminal and hose, etc.
Easy to Operate. The hydraulic cable crimper is fitted with the safety valve on handle and manual pressure relief button for easy and safe operation and comes with electric, non slip & insulated grip design for comfortable crimping and built-in combined oil valve for easy maintenance and less trouble.
Easy to Carry. The hydraulic hose crimper is equipped with a durable plastic box, which makes it portable to carry and compact to store.

Structure Diagram

Copper Terminals Crimping Effect

Tips: Precautions for replacing hydraulic oil for hydraulic crimping pliers.

Contaminated hydraulic oil or oil containing air will damage the sealing elements of hydraulic crimping pliers, resulting in failure to operate normally. In the process of replacing hydraulic oil, it is necessary to ensure that the hydraulic oil is clean and prevent external impurities from entering the hydraulic system. After refueling, wait for a few minutes, and then insert the oil plug after exhausting the air in oil reservoir.
Lock the movable handle during replacing oil to prevent air from entering the hydraulic system.
Wear rubber anti-seepage gloves all the way to avoid hydraulic oil contact with skin. If hydraulic fluid contacts with the skin accidentally, wash it off with soap water immediately.
Pay attention to protect environment, do not pour waste oil into drains or soil. Please send waste hydraulic oil to a collection center approved by the local government for disposal.
