Name: 25~55 Ton Hydraulic Crimper Head, 16~1000mm&#178;
Brand: Tool
SKU: 1279
Availability: InStock

25~55 Ton Hydraulic Crimper Head, 16~1000mm²

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

72 People watching this product now!

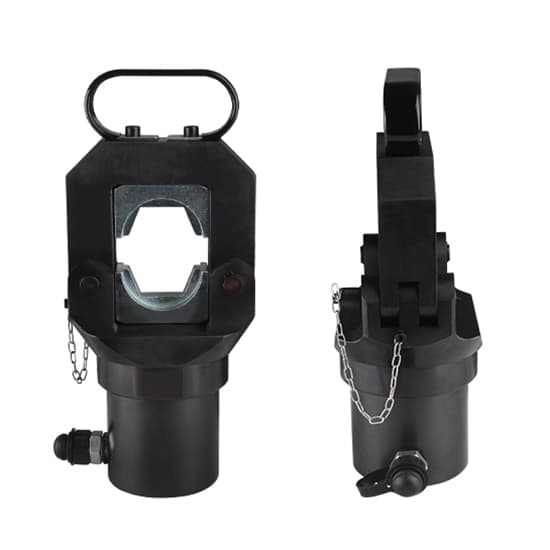

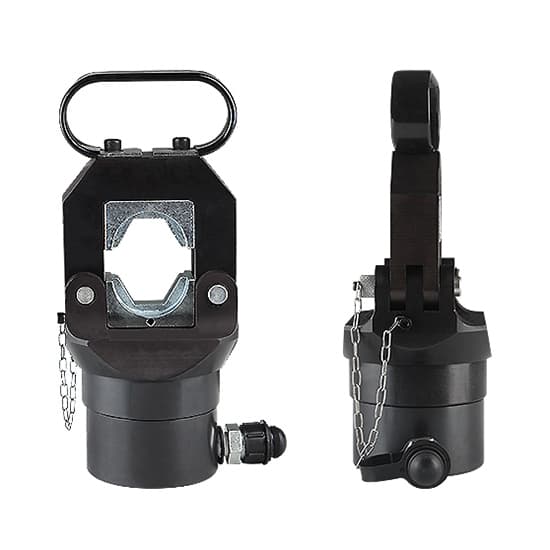

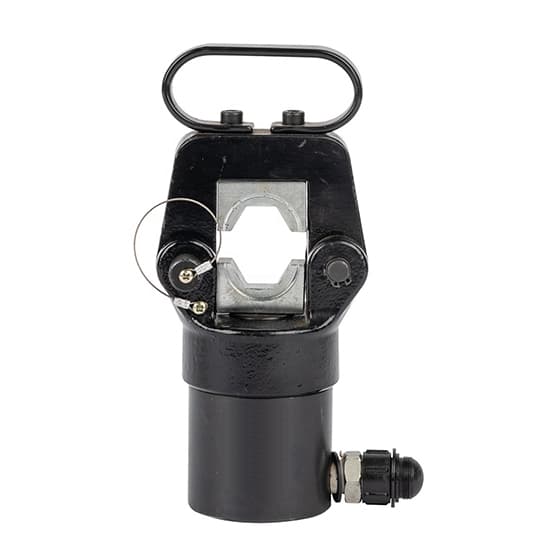

Remote-powered hydraulic crimping head with dies, are available with 16~400 mm², 16~500mm², 150~630mm², 400~1000mm² crimping range for choice, driven by a hydraulic pump (hand hydraulic pump or electric hydraulic pump). Best crimping tool for copper & aluminum terminals and cables.

Specification

Model	T-FYQ-400	T-FYQ-500	T-FYQ-630	T-FYQ-1000
Crimping Range	16~400mm²	16~500mm²	150~630mm²	400~1000mm²
CrimpingForce	25 Ton	25 Ton	35 Ton	55 Ton
Stroke	25mm	25mm	25mm	28mm
Weight	10 kg	10 kg	17 kg	26 kg
Crimping Die Quantity	12	13	7	6
Crimping Die Specification	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm²	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500 mm²	150, 185, 240, 300, 400, 500, 630 mm²	300, 400, 500, 630, 800, 1000 mm²
Recommended Pump*	Hydraulic Hand Pump: T-CP-700 Hydraulic Electric Pump: T-DYB-63A, T-HHB-700A, T-QQ-700

*Note: The hydraulic crimper head needs to be used with a hydraulic pump.

Features

For use with hydraulic pump. Hydraulic hand pump is recommended in case of no electricity, portable and easy to carry. The crimping head can also be equipped with electric hydraulic pump to achieve higher crimping efficiency and save time and effort.
Crimping force. Maximum pressure up to 25 Ton, 35 Ton or 55 Ton.
Hexagonal crimping pattern. Best for crimping copper and aluminum cable terminals, good crimping effect.
Crimping dies included. Thickened and compact design, securely installed and not easy to fall off.
Humanized handle design. With handle on the top of hydraulic crimper head, user friendly and easy to carry.
Connector with plastic dust cap. Hydraulic crimping head comes with a male connector for quick connection to hydraulic pump. The plastic dust cap protect the crimping head from dust.

Structure Diagram

Dimension Diagram
