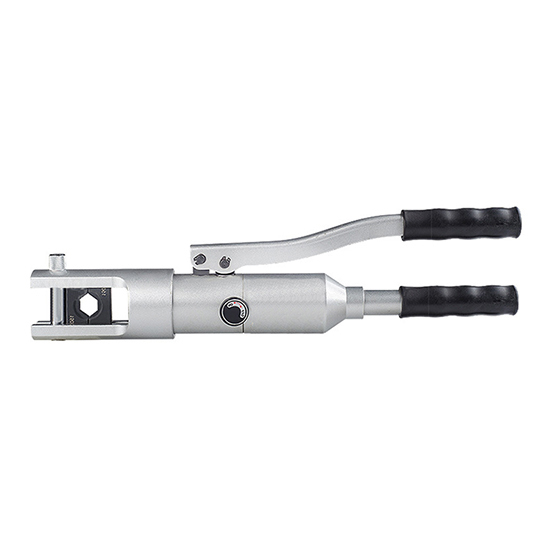

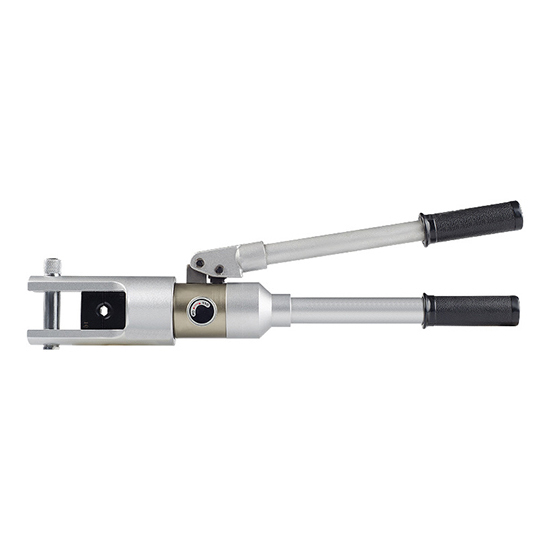

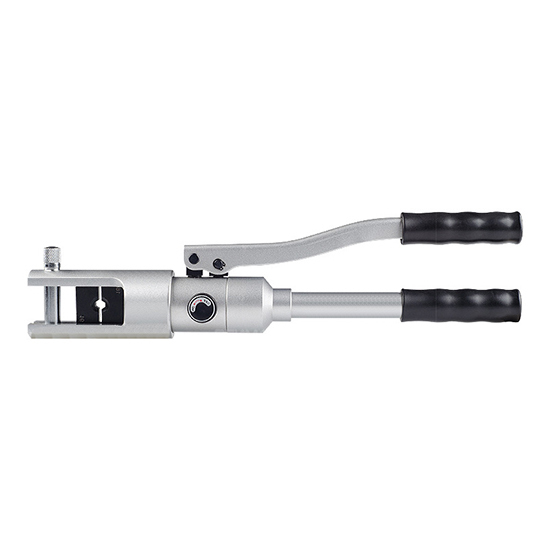

Hydraulic Crimping Tool, 10~240mm², 10 Dies

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

19 People watching this product now!

Wholesale price hydraulic crimper is widely used for crimping hose, terminal, cable wire, made of superior material, high strength and good toughness. Its maximum crimping power is 12-13 tons and comes with 10-11 crimping dies with various crimping range from 10~240mm² and 10~300mm², providing increased stability for longer service life.

Specification

Model	T-SZY-240A (Low speed)	T-SZY-240H (High speed)	T-SZY-300H
Crimping Range	10~240mm²	10~240mm²	10~300mm²
Crimping Force	12 Ton	12 Ton	13 Ton
Safety Valve	No	No	Yes
Stroke	22mm	22mm	24mm
Weight	1.8 kg	1.8 kg	2.3 kg
Die Quantity	10	10	11
Crimping Dies Configuration	16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm²	16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm²	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²

Note: For the Low speed & High speed, it means the times of pressing the handle of hydraulic crimper when crimping the copper and aluminum terminals. Using Low speed hydraulic crimper, it needs about 15 times while using High speed, it needs about 6 times (Please note that these data are for your reference ONLY, and the specific times may change according to the actual conditions).

Features

Durable Material. The hydraulic crimper is made of superior aluminum alloy material with high strength & good toughness and 10 sets of hexagon crimping dies are made of hardened steel with chrome finish, providing strong stability for longer service life.
Wide Application. The hydraulic crimping tool features 12 ton / 13 ton maximum crimping power, 10~240mm² and 10~300mm² different crimping range, best for battery and welding cables, power wires, electrical cables, etc.
Easy to Operate. The hydraulic cable crimper is fitted with the safety valve on / off knob on handle for easy and safe operation and comes with electric, non slip & insulated grip design for comfortable crimping. Single-way fixed bolt, easy to replace mold.
Easy to Carry. The hydraulic hose crimper is equipped with a durable plastic box, which makes it portable to carry and compact to store.

Structure Diagram

Dimension Diagram (Unit: mm)
