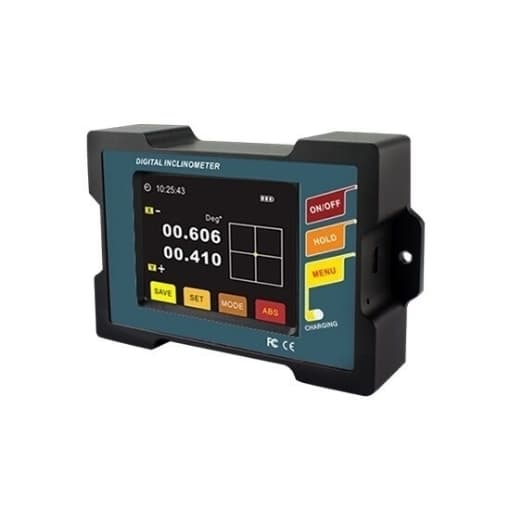

Dual Axis Magnetic Digital Inclinometer, RS485/ RS232 output
Price range: $91.99 through $134.21
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
62
People watching this product now!
Description
High precision dual-axis digital inclinometer with 10g rms, 10-100Hz shock impact, designed with aluminum anodizing which offers long service lifetime.
Specification
| Model | DMI825-15 | DMI825-30 |
| Angle Measuring Range | ±15° | ±30° |
| Mm Measuring Range | 267mm | 577mm |
| Millimeter Measuring Accuracy | 0.1 mm (RMS) | 0.2 mm (RMS) |
| The Highest Measuring Accuracy | ＜0.005 (Full measuring range) | ＜0.001 (Full measuring range) |
| Measuring Axis | Dual axis | |
| Angle Measuringt Solution | 0.001° | |
| Three Measuring Mode Selectable | Radian, Angle, mm/meter can be set | |
| Absolute Accuracy | 0.05°/rms | |
| Millimeter Measuring LCD | 0.02 mm | |
| LCD | 64-color true color luminous display | |
| LCD Visible Area Size | L57.6mm*W43.2mm | |
| Working Temperature | -10℃-70℃ | |
| Working Humidity | 85% RH | |
| Power Supply | 3.7V Charging Lithium Battery | |
| Ideal Charging Time | 5h | |
| Battery Sustainable Charging Times | 11h | |
| Output Signal | RS485/RS232 | |
| Equipped with PC Software | VC Software | |
| Connect Plug in | Standard 5 Pin USB Connector | |
| Shock Resistance | 10g @11ms, three-axis (Half sine wave) | |
| Shock Impact | 10g rms, 10-100Hz | |
| Weight | 300g | |
| Waterproof Grade | IP54 | |
| Material | Aluminum Anodizing | |
| Size | L117mm*W75mm*H27.1mm | |
| Certificate | CE, FCC, ROHS | |
| Warranty | 12 months | |
Features
- Accuracy: <0.003°
- Repeatability: 0.003°
- Angle resolution: 0.001°
- Measuring range: ±15°/ ±30°
- Data store function.
- Absolute/Relative measurement can switch.
- Both sides and bottom can be measured.
- Double benchmark strong magnet installation.
- Auto-angle interleaved compensation function.
- Auto temperature drift compensation.
- Built-in rechargable industy battaries.
- Night vision fours colors screen.
- Filter frequency optional.
