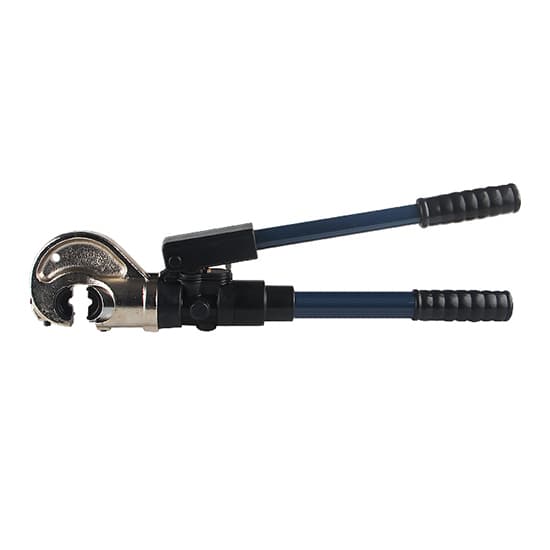

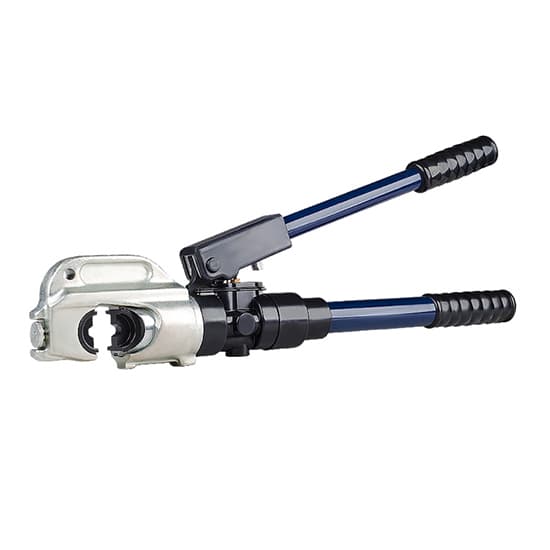

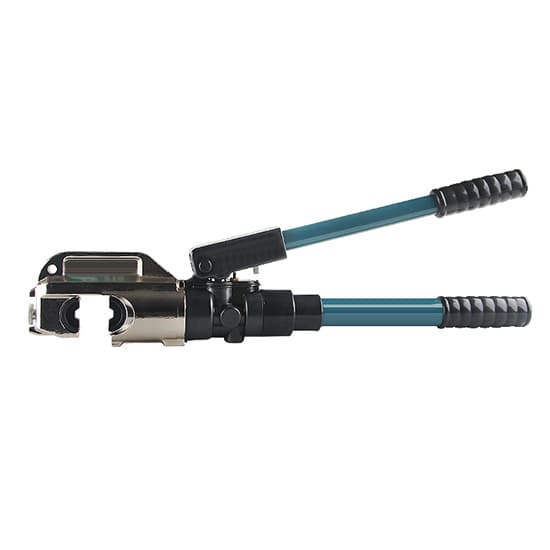

Name: Hydraulic Crimping Pliers, 16~400mm&#178;, 9 Dies
Brand: Tool
SKU: 1273
Availability: InStock

Hydraulic Crimping Pliers, 16~400mm², 9 Dies

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

33 People watching this product now!

Wholesale hydraulic crimping tools at competitive price. The hydraulic tool comes with 16~400mm² and 16~300mm² crimping range, 38 stroke, 9 crimping dies and its max. crimping force is up to 12 ton. Perfect for hose, cable and copper / aluminum terminal crimping.

Specification

Model	T-EP-430	T-EP-410	T-EP-510
Crimping Range	16~400mm²	16~300mm²	16~400mm²
Crimping Force	12 Ton	12 Ton	13 Ton
Stroke	32mm	32mm	38mm
Weight	6.5 kg	6.4 kg	6.8 kg
Die Quantity	9	9	9
Crimping Dies Configuration	50, 70, 95, 120, 150, 185, 240, 300, 400 mm²	35, 50, 70, 95, 120, 150, 185, 240, 300 mm²	50, 70, 95, 120, 150, 185, 240, 300, 400 mm²

Features

The hydraulic crimping pliers can be used in crimping power cable, copper/aluminum terminal, and hose.
2-speed high and low pressure design. High pressure, low speed. Low pressure, high speed.
Handle rotates and squeezes, and the oil returns quickly.
When reaching the maximum pressure, safety valve will automatically open to avoid damage to the crimping machine.

Structure Diagram

Pressure Relief Method

Rotate 45° clockwise to adjust the direction of oil return valve switch.
Lightly hit the oil return thimble to complete the pressure relief.

Dimension Diagram (Unit: mm)

Model	L1	L2	L3	L4	L5	L6
T-EP-430	620	102	30	32	450	165
T-EP-410	613	120	35	30	450	160
T-EP-510	635	105	30	38	450	165

Tips: Hydraulic crimping pliers maintenance.

If hydraulic crimping pliers will not be used for a long time, please loosen the oil return bolt and reset the piston to the end. Wipe the crimping pliers surface clean, and apply anti-rust grease to crimping dies and the metal surface of crimping pliers. Put them in a special tool box and store in a dry environment.
After hydraulic crimping pliers are used for a period of time, the sealing elements may be worn to varying degrees. Replace the sealing elements in time.
If there is a large amount of hydraulic oil leakage, it should be repaired by professional maintenance personnel or replace the sealing element.
