Name: 10 Ton Hydraulic Crimper Head, 16~300mm&#178;
Brand: Tool
SKU: 1277
Availability: InStock

10 Ton Hydraulic Crimper Head, 16~300mm²

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

70 People watching this product now!

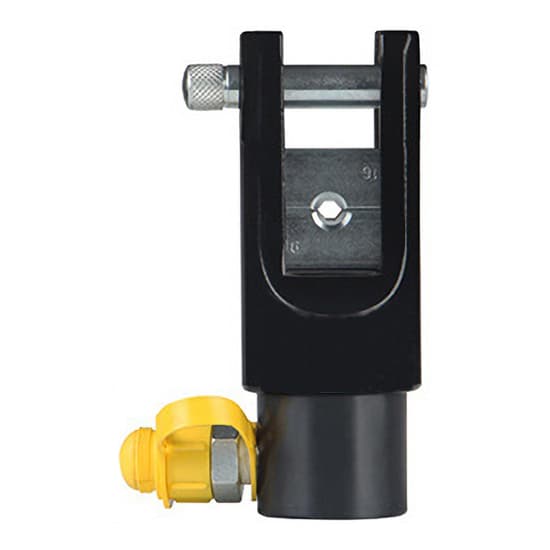

Low price yet high quality hydraulic crimping head, crimps 16~300mm² or 16~240mm² copper and aluminum wires, and the hydraulic crimper head comes with 11 dies and 10 dies separately. Remote-powered hydraulic crimping head is designed for use with a hydraulic hand pump or electric hydraulic pump. Reliable and durable crimping tool for wire cable terminal connections.

Specification

Model	T-CO-300	T-FTS-240
Crimping Range	16~300mm²	16~240mm²
Crimping Force	10 Ton	16 Ton
Stroke	16mm	20mm
Weight	2.8 kg	4 kg
Crimping Die Quantity	11 dies	10 dies
Crimping Die Specification	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²	16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm²
Recommended Pump*	Hydraulic Hand Pump: T-CP-180, T-CP-700 Hydraulic Electric Pump: T-HHB-700A, T-DYB-63A	Hydraulic Hand Pump: T-CP-700 Hydraulic Electric Pump: T-DYB-63A, T-HHB-700A, T-QQ-700

*Note: The hydraulic crimper head needs to be used with a hydraulic pump.

Features

For use with hydraulic pump. Hydraulic hand pump is recommended in case of no electricity, portable and easy to carry. The crimping head can also be equipped with electric hydraulic pump to achieve higher crimping efficiency and save time and effort.
Crimping force. Maximum pressure up to 10 Ton or 16 Ton.
Hexagonal crimping pattern. Best for crimping copper and aluminum cable terminals, good crimping effect.

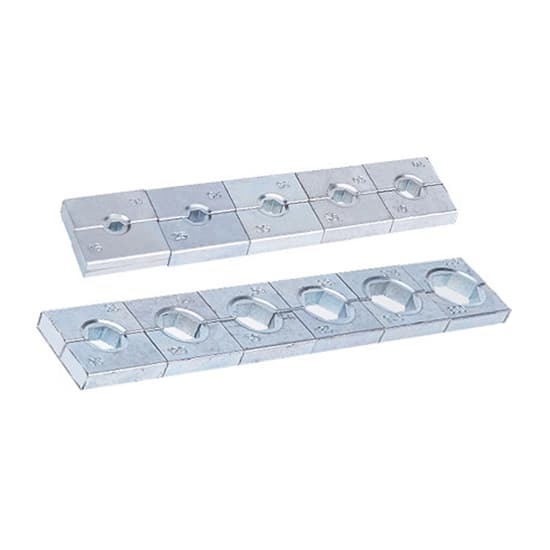

Crimping dies included. Thickened and compact design, securely installed and not easy to fall off.

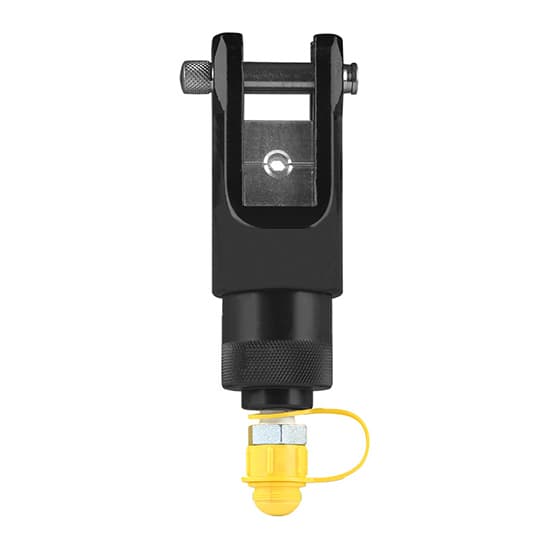

Connector with plastic dust cap. Hydraulic crimping head comes with a male connector for quick connection to hydraulic pump. The plastic dust cap protect the crimping head from dust.

Structure Diagram

Dimension Diagram (Unit: mm)
