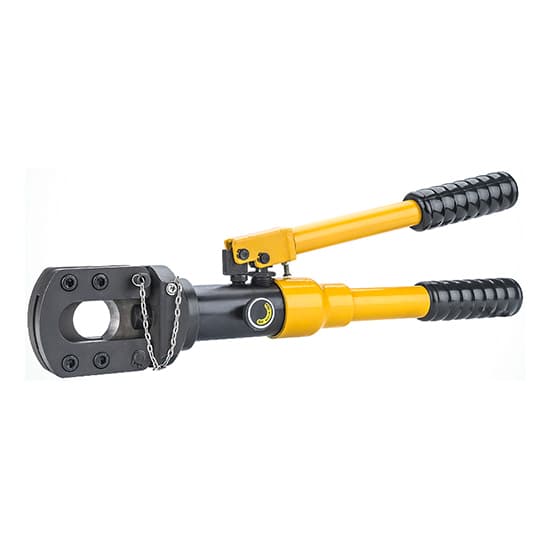

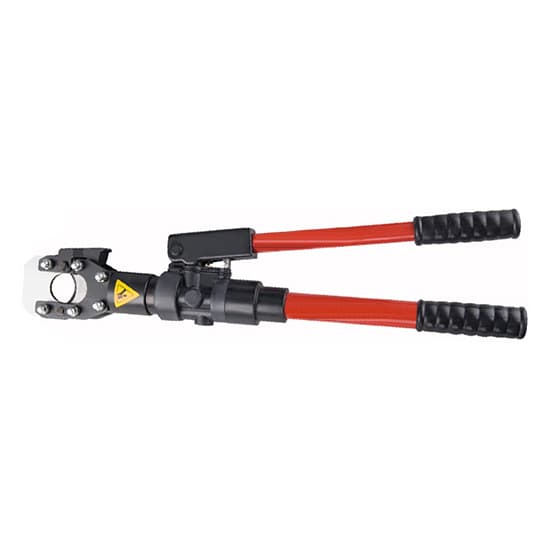

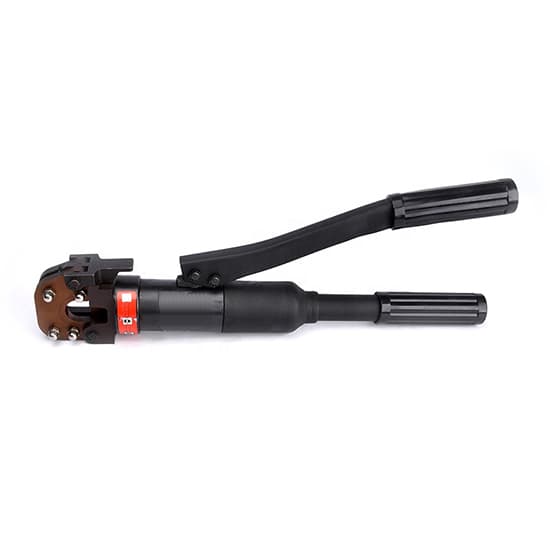

The hydraulic cable cutter is a handheld hydraulic tool to snips various of cables, includes steel wire rope, aluminum conductors steel-reinforced cable (ACSR), copper core cable, armored cable, etc.

Specification

Model	T-CPC-20A	T-CO-30	T-CPC-40A
Output	4 Ton	10 Ton	7 Ton
Maximum Cutting Diameter	20mm	30mm	40mm
Overall Length	420mm	600mm	580mm
Weight	3.05 kg	5.1 kg	5.2 kg

Applicable Materials and Cutting Range

Model	Copper Aluminum Cable	Armored Cable	ACSR Cable	Steel Wire Rope	Submarine Cable	Rebar	Iron Chain
T-CPC-20A	≤ Φ20mm	×	≤ Φ20mm	≤ Φ20mm	×	×	×
T-CO-30	≤ Φ30mm	×	≤ Φ25mm	≤ Φ25mm	×	×	×
T-CPC-40A	≤ Φ40mm	≤ Φ40mm	×	×	×	×	×

Note: × is the not applicable material.

Hydraulic Cable Cutter Structure Diagram

Features

Hydraulic cable cutter adopts guillotine type scissors, which are less likely to be jammed than ordinary scissors.
No need to set the cutting time.
Suitable for various blades and easy to replace.
The hydraulic cable cutter has a 180° rotating head, which is suitable for different cutting positions.

Attention

It is prohibited to use this hydraulic cable cutter to cut PC cables and piano cables.
Always cut cables within the maximum range of cutting capacity.
Do not use hydraulic pumps that exceed the maximum load of tool handle.

Tips: Structure characteristics of hydraulic cable cutter.

Hydraulic cable cutter has a clamp. There are card groove, chain ring groove, movable blade guide groove and static blade guide groove on the clamp. There is a hydraulic cylinder with flange in slot, and a plunger is in hydraulic cylinder. The left end of movable blade is connected with the right end of plunger through the return disk, and then hydraulic cylinder is clamped into the groove of the fixture through flange. The movable blade is in the movable blade guide groove of the fixture, and the static blade is in the static blade guide groove of the fixture.

When using hydraulic cable cutter, put cable to be cut into cutter edge first, and then inject high-pressure liquid into cylinder. Under the action of hydraulic pressure, plunger pushes the movable blade to move and cooperates with the static blade, to form a cutting force to cut cable.
