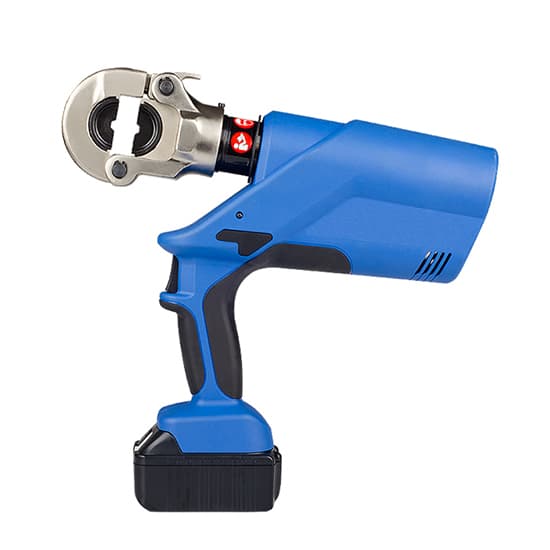

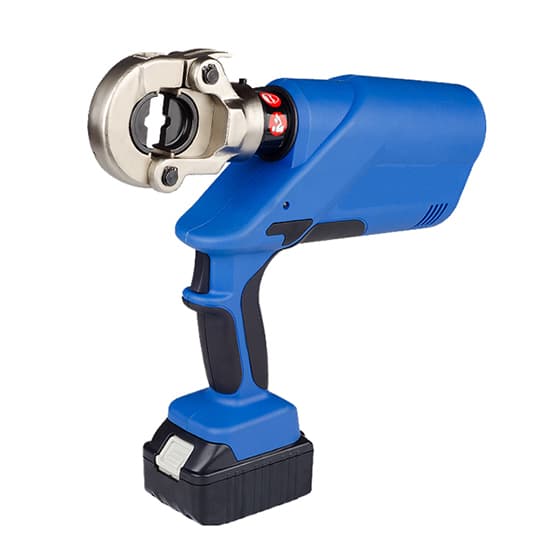

6 Ton Battery Powered Hydraulic Crimping Tool
Original price was: $912.46.$91.99Current price is: $91.99.
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
60
People watching this product now!
Description
Best price hydraulic battery cable crimpers for sale, providing 6 ton crimping force, 16-300mm² crimping range, 17mm stroke, 18V lithium voltage and 11 crimping dies ranging from 16mm² to 300mm², both C-clamp and H-clamp are available. The battery operated hydraulic crimping tool is mainly used for crimping copper and aluminum terminals.
Specification
| Model | T-EZ-300 |
| Crimping Force | 6 Ton (60KN) |
| Crimping Range | 16-300mm² |
| Stroke | 17mm |
| Crimp Times / Charge | 320 times per saturation voltage (copper wire 150mm²) |
| Crimping Cycle | 3-6s (according to cable diameter) |
| Voltage | 18V Lithium |
| Battery Capacity | 3.0Ah |
| Charging Voltage | AC 100V~240V, 50Hz~60Hz |
| Charging Time | 2 hours |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² |
| Weight | 6.5 kg |
Features
- Durable Material. The hydraulic battery cable crimper and its 11 pairs of dies are made of superior material, high strength, good toughness and longer service life. Its maximum crimping power is 6 tons.
- Wide Application. The battery hydraulic crimping tool is equipped with 11 sets of the crimping dies and its head can be rotated 180° freely for narrow space working, a good choice for crimping copper and aluminum terminals. It can crimp C-clamp and H-clamp.
- Easy to Operate. Provided with double speed and double acting hydraulic device design. During the process of low pressure crimping, piston advances rapidly. After the mold contacts terminal, piston advances slowly to ensure crimping quality.
- Safet to Use. The battery powered hydraulic crimping tool is equipped with safety valve inside for protecting the crimping machine. When the max. pressure reaches, the safety valve will release automatically to prevent over pressure.It also comes with insulated handle to prevent accident electric hitting.
- Easy to Carry. The battery hydraulic crimper comes with a durable plastic box, which makes it portable to carry and compact to store.
Full Set Product Diagram
| ① Hydraulic Crimping Pliers |
| ② 1 Charger |
| ③ 2 Batteries |
| ④ 11 Dies |
Structure Diagram
Dimension
Installation Diagram
Tips: Operation steps of battery powered hydraulic crimping tool.
- Press the battery button, insert battery into crimping tool, and then release the button. As shown in Figure 1.
- Choose a suitable crimping die and insert it into crimping joint. A sound indicates that the mold is locked. As shown in ① of Figure 2.
- When there is no pressure in crimping tool, rotate crimping joint to the desired position. As shown in ② of Figure 2.
- Insert cable into the terminal to be crimped, and then put it in crimping tool. Press the control button and the die quickly approaches terminal. If release the control button at this time, the die will stop immediately. Press the control button again, the die will continue to advance quickly. After the die contacts terminal, it becomes a slow crimping. When the two dies are in contact, they are crimped into place. At this time, release the control button, crimping die will automatically return to the starting position.
- Press the control button to start crimping. LED lights immediately light up to illuminate work space. Release the control button after operation is completed, and LED light will automatically turn off after 10s.
