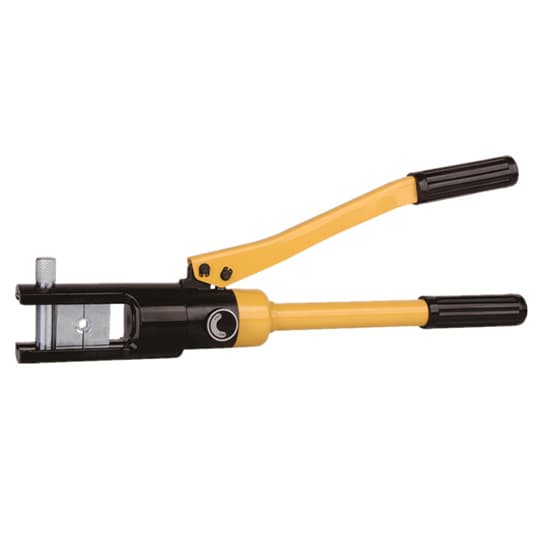

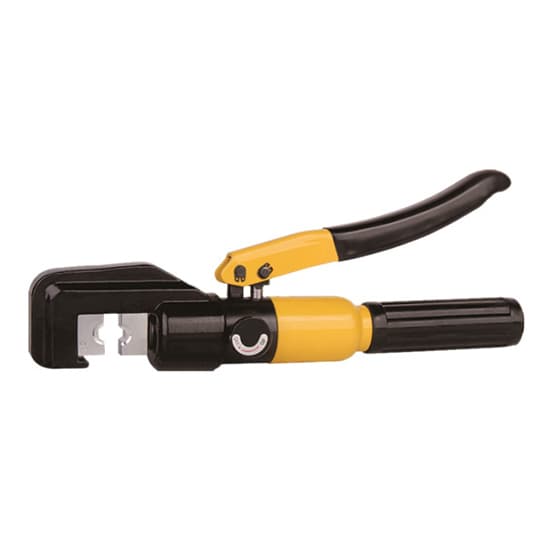

The hydraulic crimper is perfect for crimping copper / aluminum terminals, provides 8-12 tons of crimping force for use, has four models for user to choose from and is equipped with 8-11 sets of crimping dies with different crimping ranges 4~70mm², 10~120mm², 16~240mm², 160~300mm². The hydraulic crimping tool comes with a durable plastic box for easy carrying.

Specification

Model	T-YQK-70	T-YQK-120	T-YQK-240	T-YQK-300
Crimping Range	4~70mm²	10~120mm²	16~240mm²	160~300mm²
Crimping Force	8 Ton	8 Ton	12 Ton	12 Ton
Stroke	14mm	14mm	20mm	20mm
Weight	2.8 kg	4 kg	6.2 kg	6.8 kg
Die Quantity	8	8	10	11
Crimping Dies Configuration	4, 6, 10, 16, 25, 35, 50, 70 mm²	10, 16, 25, 35, 50, 70, 95, 120 mm²	16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm²	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²

Features

Durable Material. The hydraulic crimper is made of superior steel material with high strength & good toughness and 8 sets of hexagon crimping dies are made of hardened steel with chrome finish, providing strong stability for longer service life.
Wide Application. The hydraulic crimping tool features 8 ton / 10 ton / 11 ton maximum crimping power, 4~70mm², 10~120mm², etc. different crimping range and its head can be rotated 180° freely for narrow space working, best for battery and welding cables, power wires, electrical cables, etc.
Safe to Operate. The hydraulic cable crimper is fitted with the safety valve on / off knob on handle for easy and safe operation and comes with electric, non slip & insulated grip design for comfortable crimping.
Easy to Carry. The hydraulic hose crimper is equipped with a durable plastic box, which makes it portable to carry and compact to store.

Structure Diagram

Dimension Diagram (Unit: mm)

Model	L1	L2	L3	L4
T-YQK-70	310	110	100	87
T-YQK-120	400	110	105	125
T-YQK-240	470	130	105	125
T-YQK-300	470	130	105	125

Tips: Common troubleshooting for hydraulic crimping tool.

Malfunction	Cause	Solution
The cables and terminals after crimping are not firm.	1. Hydraulic crimping tool has not reached the rated pressure. 2. Crimping dies selection is wrong.	1. Replenish or replace hydraulic oil. 2. Replace the appropriate crimping die.
There are a lot of burr on cables and terminals after crimping.	Incorrect crimping dies selection.	Replace with a suitable crimping die.
There is hydraulic oil leaking from the tool head or plunger.	Sealing element id damaged.	Ask professional maintenance personnel to replace the sealing element.
