Name: Φ 50mm Hydraulic Cable Cutter, 8 Ton
Brand: Tool
SKU: 1286
Availability: InStock

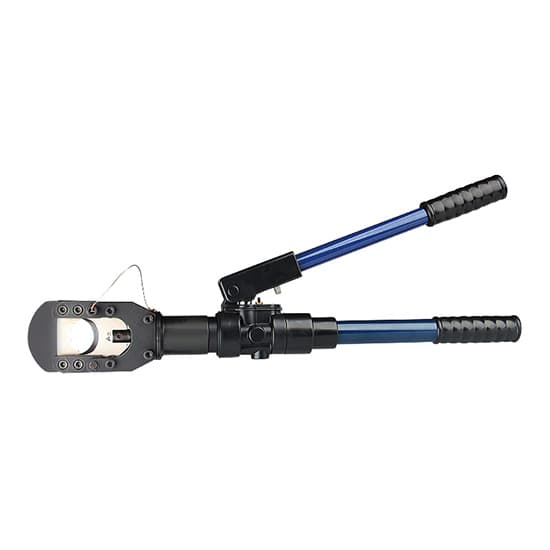

Φ 50mm Hydraulic Cable Cutter, 8 Ton

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

20 People watching this product now!

The hydraulic cable cutter is a small hand tool powered by hydraulic, used for cutting ordinary cable wire, steel wire rope, aluminum conductors steel-reinforced cable (ACSR), copper cable, armored cable, etc.

Specification

Model	T-CPC-50FR	T-CPC-40FR
Output	8 Ton	7 Ton
Maximum Cutting Diameter	50mm	40mm
Overall Length	660mm	650mm
Weight	6 kg	6 kg

Applicable Materials and Cutting Range

Model	Copper Aluminum Cable	Armored Cable	ACSR Cable	Steel Wire Rope	Submarine Cable	Rebar	Iron Chain
T-CPC-50FR	≤ Φ50mm	≤ Φ50mm	≤ Φ50mm	≤ Φ30mm	×	×	×
T-CPC-40FR	≤ Φ20mm	≤ Φ40mm	≤ Φ40mm	≤ Φ20mm	×	×	×

Note: × is the not applicable material.

Hydraulic Cable Cutter Structure Diagram

Features

The hydraulic cable cutter has a high-strength cutter head. Blade is made of high-quality special steel and has a long life.
Cutter edge can be opened to facilitate the removal/insertion of cables and blade replacement.
The hydraulic cable cutting tool has a built-in safety valve, semi-automatic and rapid pressure relief, quick reset.

Attention

It is prohibited to use this hydraulic cable cutter to cut PC cables and piano cables.
Always cut cables within the maximum range of cutting capacity.
Do not use hydraulic pumps that exceed the maximum load of tool handle.
