Name: Φ 50/75/85mm Hydraulic Cable Cutter, 8 Ton
Brand: Tool
SKU: 1284
Availability: InStock

Φ 50/75/85mm Hydraulic Cable Cutter, 8 Ton

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

61 People watching this product now!

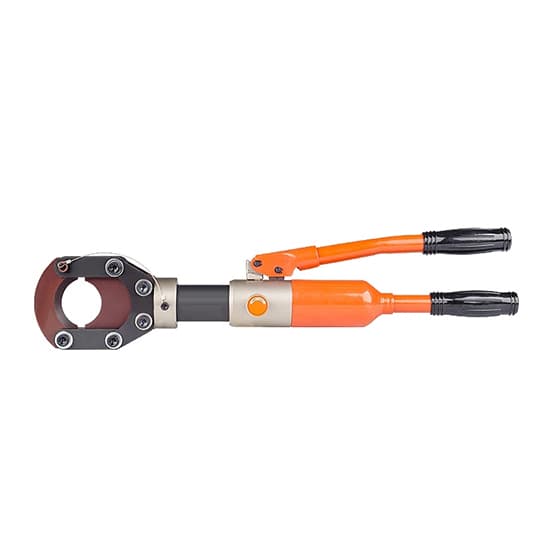

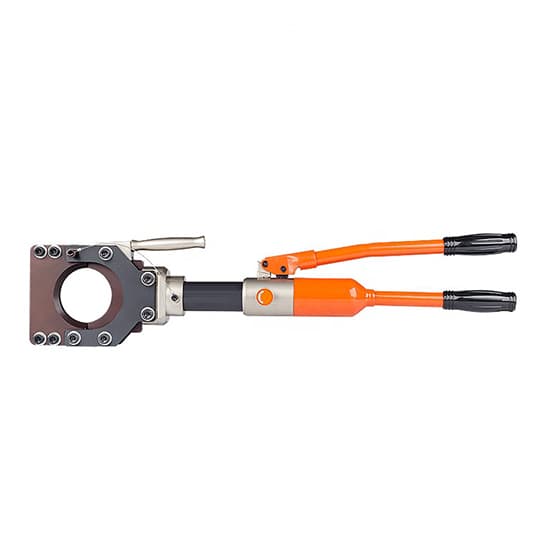

The hydraulic cable cutter is a small handheld hydraulic tool for cable and wire cutting. Available materials are copper core cable, armored cable and ordinary cable wire, etc.

Specification

Model	T-CPC-50	T-CPC-75	T-CPC-85
Output	8 Ton	8 Ton	8 Ton
Maximum Cutting Diameter	50mm	75mm	85mm
Overall Length	680mm	710mm	710mm
Weight	5.75 kg	8.75 kg	8.9 kg

Applicable Materials and Cutting Range

Model	Copper Aluminum Cable	Armored Cable	ACSR Cable	Steel Wire Rope	Submarine Cable	Rebar	Iron Chain
T-CPC-50	≤ Φ50mm	≤ Φ50mm	×	×	×	×	×
T-CPC-75	≤ Φ75mm	≤ Φ75mm	×	×	×	×	×
T-CPC-85	≤ Φ85mm	≤ Φ50mm	×	×	×	×	×

Note: × is the not applicable material.

Hydraulic Cable Cutter Structure Diagram

Features

The hydraulic cable cutter has a hard spring steel blade, which is heat-treated, durable and fast in cutting speed.
The blade edge can be opened, blade replacement is convenient.
It is convenient to cut off in distribution box, and can also be used in cutting high-voltage PE, IV cables and telephone lines.

Attention

It is prohibited to use this hydraulic cable cutter to cut PC cables and piano cables.
Always cut cables within the maximum range of cutting capacity.
Do not use hydraulic pumps that exceed the maximum load of tool handle.

Tips: Use hydraulic cable cutter to cut cable wire.

After putting the material to be cut into hydraulic cable cutter, close the upper blade. Check whether the movable pin of jaws has been completely inserted into the hole.
After preparation work is completed, tighten the oil return bolt. Hold the grip of handle firmly with both hands and swing the movable handle until cable is cut, then complete the first cutting operation.
Loosen the oil return bolt counterclockwise to quickly reset the lower die seat and piston.
If you need to cut again, repeat the above steps.
