Name: Hydraulic Gear Puller, 5/10/20 Ton
Brand: Tool
SKU: 1289
Availability: InStock

Hydraulic Gear Puller, 5/10/20 Ton

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

73 People watching this product now!

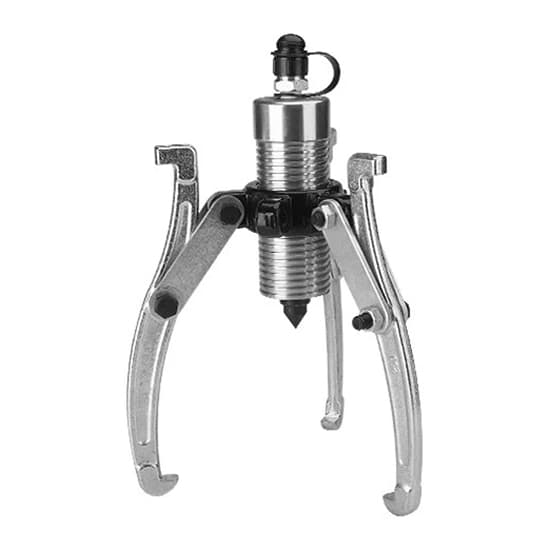

The hydraulic puller is a removal tool for gear and bearing, 3-jaw and 2-jaw can be used interchangeably. It relies on a hydraulic hand pump or electric pump for output force.

Specification

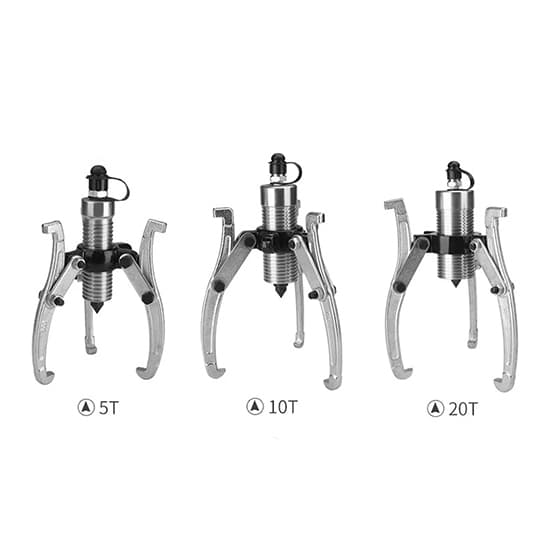

Model	T-FYD-5	T-FYD-10	T-FYD-20
Output Force	5 Ton	10 Ton	20 Ton
Max. Lateral Pull Distance	200mm	250mm	350mm
Max. Longitudinal Pull Distance	140mm	160mm	200mm
Stroke	50mm	50mm	50mm
Thread Diameter	45.6mm	60mm	73mm
Weight	4.5 kg	7.5 kg	13.5 kg
Recommended Pumps	Hydraulic Hand Pump T-CP-180 (850 psi) Hydraulic Electric Pump T-HHB-700A (10,000 psi, 750W)		Hydraulic Hand Pump T-CP-700 (10,000 psi) Hydraulic Electric Pump T-HHB-700A (10,000 psi, 750W)

Hydraulic Gear Puller Structure Diagram

Hydraulic Bearing Puller Use

Longitudinal Use	Lateral Use

Hydraulic Gear Puller Jaws Installation Diagram

3-Jaw Installation	2-Jaw Installation

Hydraulic Gear Puller Configurations

① pump body*1

② Rama circle*1

③ jaw*3

④ pull sheet*6

⑤ screw*4

⑥ thimble*1

Tips: Precautions for using hydraulic gear puller.

To prevent the hydraulic gear puller from being damaged by overloading, an automatic overload unloading valve is installed in the hydraulic device. When the pulled gear or bearing exceeds the rated load, the overload valve will automatically unload. At this time, a larger tonnage hydraulic puller should be used.
Hydraulic gear puller uses oil as the medium, and maintenance of oil and tools must be done to avoid clogging or oil leakage, otherwise it will affect the use effect.
For a new or long-placed hydraulic gear puller, because there is more air in cylinder, piston rod may suddenly jump slightly when starting use. Reciprocate the hydraulic gear puller 2-3 times without load to remove the air in cylinder.
If the hydraulic gear puller is idle for a long time, seals will harden due to long-term non-working, which will affect the tool service life. Therefore, when the hydraulic puller is not used, it should be reciprocated 2-3 times a month without load.
