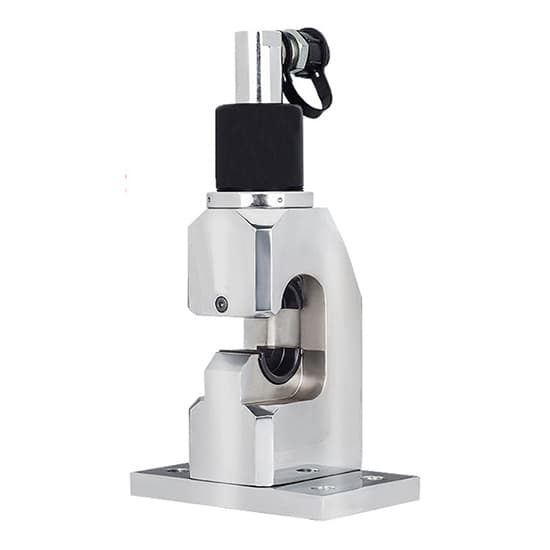

Name: 12 Ton Hydraulic Crimper Head, 50~400mm&#178;
Brand: Tool
SKU: 1280
Availability: InStock

12 Ton Hydraulic Crimper Head, 50~400mm²

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

53 People watching this product now!

Best price hydraulic crimping head with dies included for copper and aluminum terminal connectors. Optional crimping range 50~400mm² (12 Ton output force) and 16~240 mm² (10 Ton output force). Remote powered hydraulic crimping head needs to be driven by a hydraulic hand pump or electric hydraulic pump.

Specification

Model	T-HHY-240F	T-HHY-400F
Crimping Range	16~240mm²	50~400mm²
CrimpingForce	10 Ton	12 Ton
Weight	14 kg	11 kg
Crimping Die Quantity	10 dies	9 dies
Crimping Die Specification	16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm²	50, 70, 95, 120, 150, 185, 240, 300, 400 mm²
Recommended Matching Pump*	Hydraulic Hand Pump: T-CP-700 Hydraulic Electric Pump: T-HHB-700A, T-DYB-63A, T-QQ-700

*Note: The hydraulic crimper head needs to be used with a hydraulic pump.

Features

For use with hydraulic pump. Hydraulic hand pump is recommended in case of no electricity, portable and easy to carry. The crimping head can also be equipped with electric hydraulic pump to achieve higher crimping efficiency and save time and effort.
Stainless steel material. The main body of hydraulic crimper head is made of stainless steel with chrome plated, corrosion resistant and durable for use.
Widened base design. The crimping head can be installed on workbench for operation.
C-shaped crimping head. Easy to change the dies, and convenient to crimp wire and cable connectors.

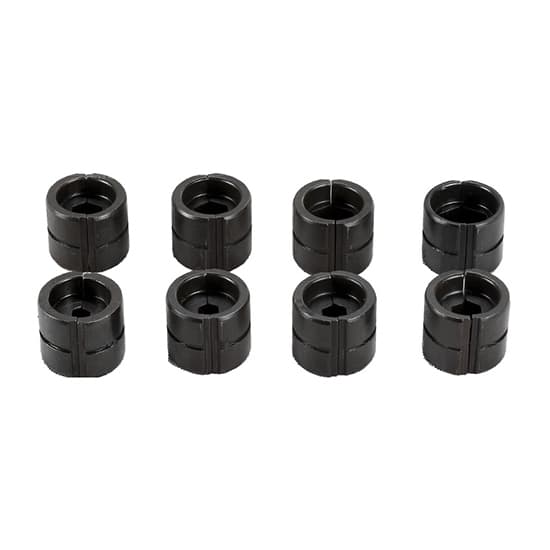

Crimping dies included. Thickened and compact design, securely installed and not easy to fall off.
Connector with plastic dust cap. Hydraulic crimping head comes with a male connector for quick connection to hydraulic pump. The plastic dust cap protect the crimping head from dust.

Structure Diagram

Dimension Diagram
