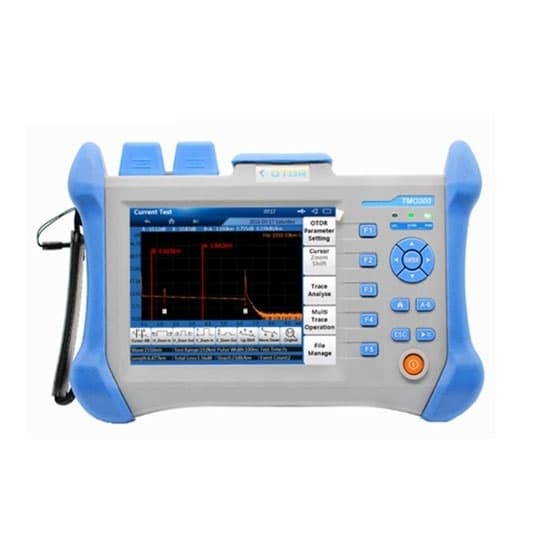

Portable OTDR Optical Fiber Tester, 1310/1550nm, 32/30dB
Original price was: $1,988.76.$198.99Current price is: $198.99.
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
60
People watching this product now!
Description

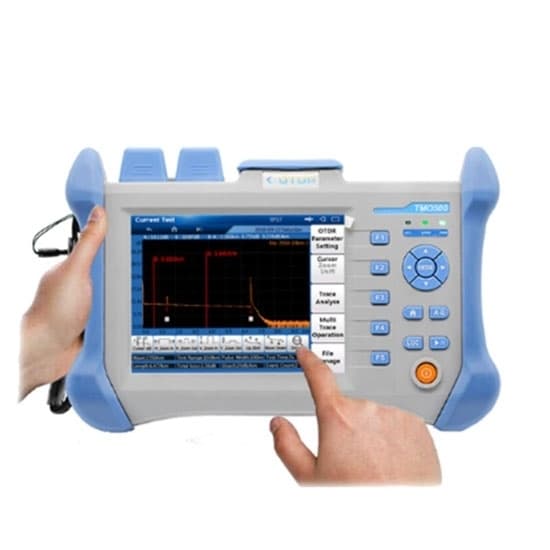

The OTDR optical fiber tester offers both touch screen and button operation, with a single button for measurement. It features an event blind area of 0.8m and attenuation blind area of 4m. The device can save and generate standard curve files, has large storage, and supports easy report and curve printing for project acceptance.
Feature
- 5.6″ touch screen with a 7.4V/4.4Ah lithium battery.
- OTDR optical fiber tester integrates multiple dynamic ranges and wavelengths.
- Supports various measurement modes with both touch LCD and keypad operation.
- Includes a warning function to protect the OTDR module from damage caused by optical signals in the fiber.
- Real-time measurement function for easy monitoring of the fusion splicing process.
- Features an integrated 10mW visual fault locator.
- Equipped with 8GB internal memory, capable of storing over 80,000 sets of curves.
- Supports PC remote access and control, enabling printing of measurement reports.
Specification
| Model | T-OTDR-FC300 |
| Pulse Width | (SM 1310/1550NM) 5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs |
| (MM 850/1300NM) 5ns, 10ns, 20ns, 50ns, 100ns, 500ns, 1us | |
| Distance Range | (SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km |
| (MM 850/1300NM) 100m, 400m, 1.3km, 2.5km, 5km, 10km, 20km, 40km, 80km | |
| Sampling Resolution | Minimum 0.05m |
| Sampling Point | 128000 |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.001dB |
| Distance Resolution | 0.01m |
| Distance Accuracy | ±(1m+measuring distance×3×10 + sampling resolution) |
| Data Storage | 80000 groups of curve |
| VFL | 10mW, CW/2Hz |

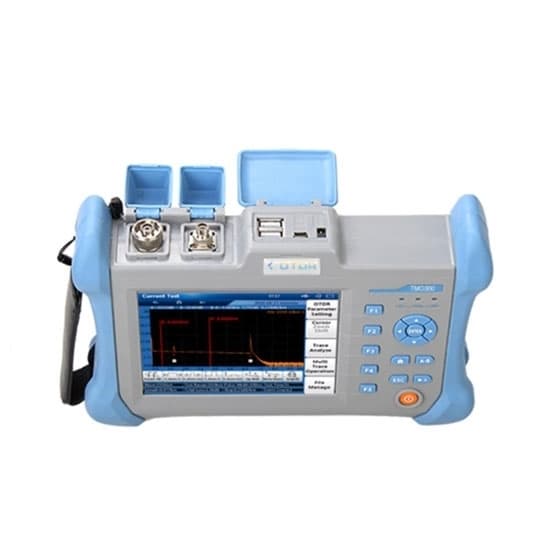

| Interface | 3 USB ports (Type A×2, Type B×1) |
| Display | 5.6 inch TFT-LCD, Touching screen |
| Language | English, Spanish, Chinese |
| Battery | 7.4V/4.4Ah lithium battery, support 8 hours continuous working |
| Working Conditions | Working Temp: -10℃~+50℃, Storage Temp: -20℃~+70℃, Humitity: ≤95% (non-dew) |
| Dimensions | 253×168×73.5mm |
| Certificate | CE |
| Weight | 1.5kg (Include battery) |

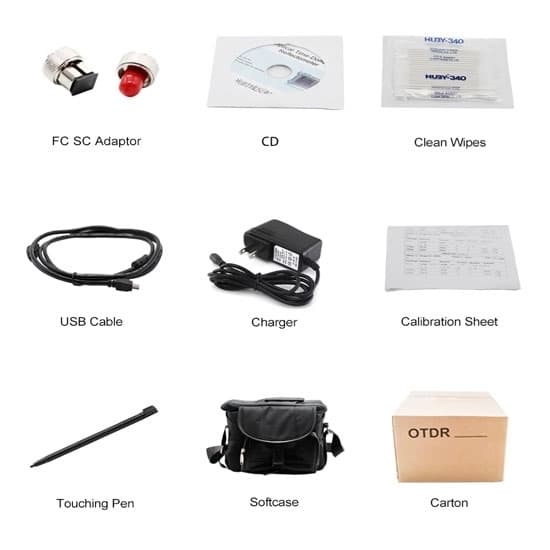

| Packing List | Straps, Adaptor, Lithium battery, FC connector, USD Cable, User Guide, CD, Softbag, Cleaning cotton |
Dynamic Range Type
| Dynamic Range Type | Testing Wavelength | Dynamic Range | Event/Attenuation Dead-zone |
| TMO300A | 1310/1550nm | 30/28dB | 0.8/4m |
| TMO300B | 1310/1550nm | 32/30dB | 0.8/4m |
OTDR Graph
Application
OTDR (Optical Time Domain Reflectometer) measures fiber attenuation, splice loss, and fault location by analyzing the backward scattered light as it propagates through the fiber. It provides detailed information on the loss distribution along the fiber’s length. This makes the OTDR tester a crucial tool for fiber optic cable construction, maintenance, and monitoring.
Tips: How to Avoid OTDR Device Damage?
- Pay attention to the warning function during use to prevent excessive optical signals from damaging the OTDR module.
- Regularly check the battery level to avoid low battery affecting device performance.
- Perform data backups promptly to prevent data loss and ensure the safety of test results.
