Name: Quartz Hour Meter for Lawn Mower, 10-80V DC/ 100-250V AC
Brand: Tool
SKU: 1463
Availability: InStock

Quartz Hour Meter for Lawn Mower, 10-80V DC/ 100-250V AC

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

13 People watching this product now!

Buy a high-accuracy hour meter to keep your mower operating efficiently and reliably. This quartz hour meter delivers ±0.01 precision, supports wide DC and AC voltages, and tracks up to 99999.9 hours. Lightweight, fully sealed, and vibration-resistant, it performs reliably from -10℃ to 75℃, ensuring accurate industrial hour meter monitoring for mechanical equipment.

Specifications

Model	T-SYS-1
Timing Range	99999.9 hours
Timing Accuracy	±0.01
Reset Function	No reset
Voltage Type	DC: 10-80V / AC: 100-250V
Power Consumption	0.3W
Operating Temperature	-10℃ ~ 75℃
Relative Humidity	Fully sealed
Vibration Resistance	10-70Hz, 1-8g (G-force)
Weight	62g

Tips:

This hour meter supports two voltage ranges: DC 10-80V and AC 100-250V.
For equipment like excavators, loaders, and road rollers, the DC 10-80V version is required. Please leave a note with your voltage requirement when placing your order.

Feature

Durable and Protective Casing: Fully sealed to prevent dust and moisture, ensuring accurate quartz hour meter performance over time.
Accurate Runtime Measurement: Delivers precise quartz timing to monitor lawn mowers, excavators, and other machinery efficiently.
Energy-Efficient Operation: Only 0.3W power consumption for long-term, reliable use, making it ideal as an industrial hour meter for continuous monitoring.
Vibration-Resistant and Rugged: Withstands vibrations and harsh conditions, making it ideal for outdoor and industrial environments.
Compact and Lightweight: Easy installation due to its small 62g design.
Long-Term Reliability: Maintains cumulative operating hours without the risk of accidental resets.

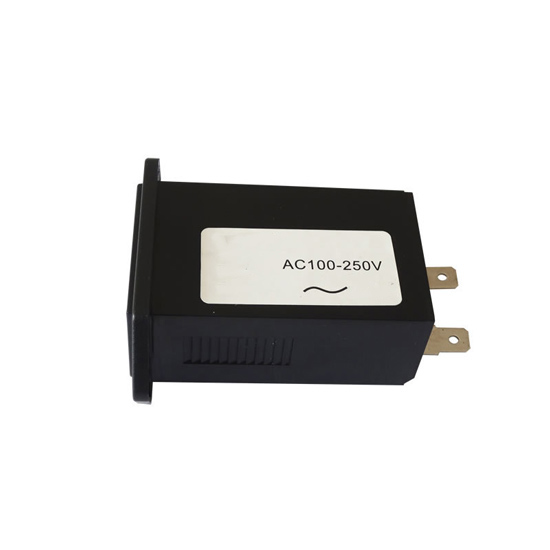

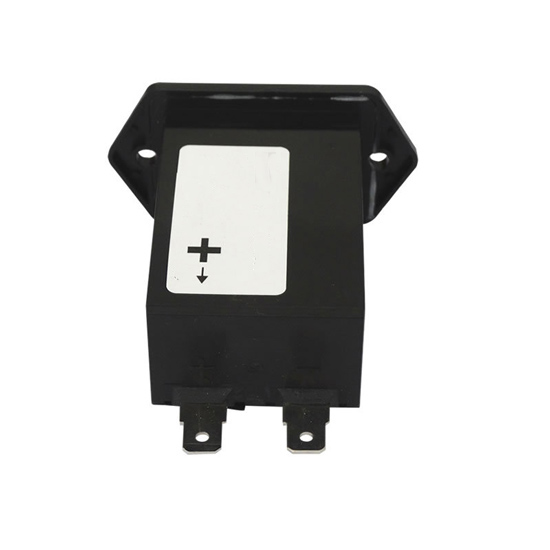

Detail

Installation

Application

Hour meter is widely used across a range of machinery, including excavators, bulldozers, generators, air compressors, pumps, and agricultural equipment. Whether as a durable excavator hour meter for construction fleets or a reliable hour meter for lawn mowers and vehicles, this universal hour meter delivers stable performance.
