Name: Smart Smoke &amp; Carbon Dioxide (CO2) Detector, 400-5000 ppm
Brand: Tool
SKU: 1544
Availability: InStock

Smart Smoke & Carbon Dioxide (CO2) Detector, 400-5000 ppm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

45 People watching this product now!

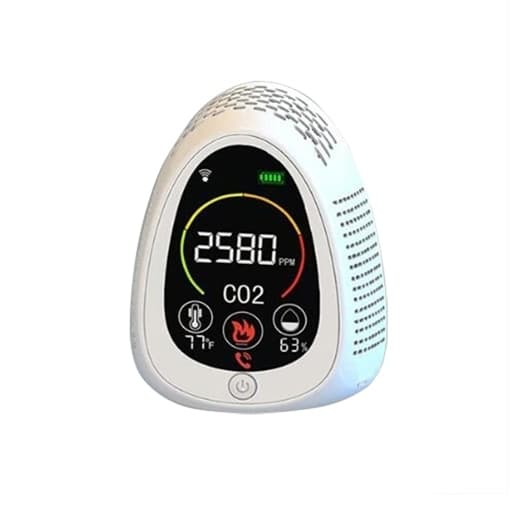

This five-in-one smoke detector is equipped to detect smoke, carbon dioxide, temperature, humidity, as well as sensing Wi-Fi. It incorporates a high-precision photoelectric sensor and NDIR CO2 sensor capable of detecting CO2 levels within the range of 400-5000 ppm, with a resolution of 1 ppm. The detector automatically triggers an alarm when the concentration exceeds the standard, thereby safeguarding the security of your home.

Specification

Model	PT-01
Smoke Sensor	Photoelectric smoke sensor
CO2 Sensor	NDIR CO2 sensor
CO2 Measuring Range	400-5000 ppm
Accuracy	±5% ppm
Resolution	1 ppm
CO2 Indicator	0-499 ppm — shown as green 500-999 ppm — shown as yellow 1000-1499 ppm — shown as orange Over 1500 ppm — shown as red
Smoke Sensitivity	0.1% db/m – 0.3% db/m
CO2 and Smoke Alarm	85 dB (1-3m)
Temperature Measuring Range	-20℃~+60℃ (±2%)
Humidity Measuring Range	5%~95% (±5%)
Compatibility	Integrates with Tuya App for smartphone control
Operating Temperature	-10℃~+60℃
Operating Humidity	5~95%RH (non-condensing)
Battery Capacity	1400 mAh
Input Voltage	AC 220V
Power Supply	Rechargeable battery and 2 meter USB
Material	Fire resistant ABS+LCD
Dimension	10252140mm
Weight	0.35kg

Smoke & Carbon Dioxide Detector Features

You will be notified on your smartphone whenever an alarm is triggered.
Displays daily data for the Wifi Smoke Detector and also displays the previous month’s data.
Built-in 1400mAh Li-Ion rechargeable bettery-powered up to 8 hours operation.
Alarm Memory Feature that gives visual indication when the alarm has sensed a hazardous condition.
Encased in fire-resistant ABS material.

Smoke & Carbon Dioxide Detector Details

Smoke & Carbon Dioxide Detector Dimension (unit: mm)

Applications

Tips: How do smart smoke detectors integrate with smart home systems?

This smart smoke and CO2 detector connects to your home’s Wi-Fi network or Bluetooth so they can communicate with other smart devices even when you’re not at home and send alerts via the Tuya App.

Are smart smoke detectors complicated to install and maintain?

The installation steps for smart smoke alarms are usually simple enough for most homeowners to do on their own:

You can install the smart smoke detector in the same location as a traditional detector, utilizing the same mounting base and power cord (in the case of hardwired models) or batteries (in the case of battery-powered models).
Along with the instructions that come with the product, you can follow the steps for installation. Typically, this includes securing the alarm, connecting the power supply, or inserting the batteries.
Once the installation is complete, you will need to connect the alarm to your home’s Wi-Fi network and configure it through the appropriate mobile app. This step may involve scanning the QR code on the product or entering the Wi-Fi password.
