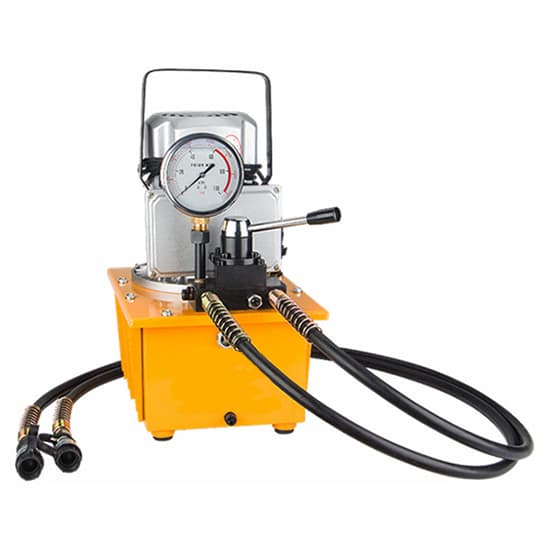

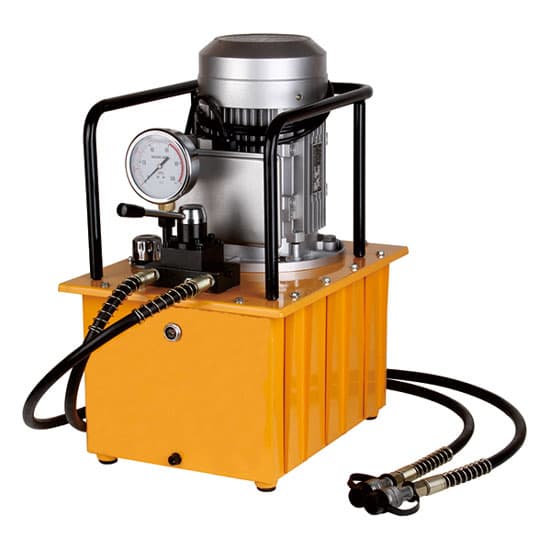

3kW Hydraulic Electric Pump, 10000 psi
Price range: $78.99 through $670.07
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
17
People watching this product now!
Description
The hydraulic pump is powered by electric motor, rated voltage is single-phase 110V or 3-phase 380V. Double loop acting, 2-stage of high and low pressure oil output and rated pressure is 10,000 psi.
Specification
| Model | T-DB300-S2 | T-DB150-S2 | T-HHB-700AB |
| High Pressure | 10,000 psi (70Mpa) | ||
| High Pressure Flow Rate | 2.8L/min | 1.7L/min | 0.9L/min |
| Low Pressure | 1450 psi (10Mpa) | 1450 psi (10Mpa) | 1015 psi (7Mpa) |
| Low Pressure Flow Rate | 14L/min | 7.9L/min | 5L/min |
| Motor Power | 3kW | 1.5kW | 0.75kW |
| Voltage | 110V, 380V | ||
| Frequency | 50Hz/60Hz | ||
| Speed | 1400 rpm | ||
| Oil Storage Capacity | 30L | 30L | 7L |
| Oil Type | 15#-46# antiwear hydraulic oil | 15#-46# antiwear hydraulic oil | ≤15# hydraulic oil |
| Weight | 45 kg | 45 kg | 30 kg |
Features
- Oil absorption of the hydraulic electric pump is turbine vane-type, can reach the highest effective oil volume.
- Pressure safety valve overload protection. When it reaches 700kg/cm², will automatically release pressure.
- Oil storage capacity can be customized, oil tube joint is matched with PT3/8″ thread.
Structure Diagram of Hydraulic Electric Pump
| T-DB300-S2 (3kW) & T-DB150-S2 (1.5kW) |
| T-HHB-700AB (0.75kW) |
