Name: Φ 40mm Hydraulic Cable Cutter, 7 Ton
Brand: Tool
SKU: 1285
Availability: InStock

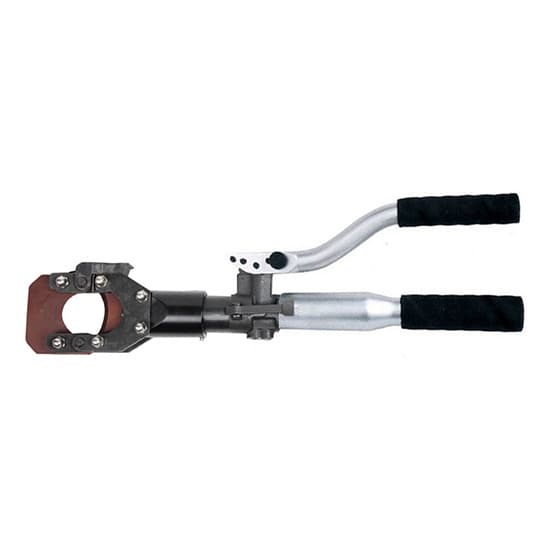

Φ 40mm Hydraulic Cable Cutter, 7 Ton

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

64 People watching this product now!

The hydraulic cable cutter can snips steel wire rope, aluminum conductors steel-reinforced cable, copper cable and ordinary cable and wire. It is a handheld hydraulic cable cutting tool.

Specification

Model	T-HT-40A	T-HT-50A
Output	7 Ton	7 Ton
Maximum Cutting Diameter	40mm	50mm
Overall Length	650mm	620mm
Weight	6 kg	6.2 kg

Applicable Materials and Cutting Range

Model	Copper Aluminum Cable	Armored Cable	ACSR Cable	Steel Wire Rope	Submarine Cable	Rebar	Iron Chain
T-HT-40A	≤ Φ40mm	×	≤ Φ20mm	≤ Φ25mm	×	×	×
T-HT-50A	≤ Φ50mm	×	≤ Φ50mm	≤ Φ30mm	×	×	×

Note: × is the not applicable material.

Hydraulic Cable Cutter Structure Diagram

Features

The hydraulic cable cutter is made of aluminum alloy, with a built-in safety valve, a one-key oil return button and a double-speed oil pump core.
High-carbon tungsten alloy steel blade, heat-treated at HRC-65℃, high strength.
2-stage of high-speed and low-pressure, improve cutting efficiency, save time and effort.

Attention

It is prohibited to use this hydraulic cable cutter to cut PC cables and piano cables.
Always cut cables within the maximum range of cutting capacity.
Do not use hydraulic pumps that exceed the maximum load of tool handle.

Tips: Hydraulic cable cutter maintenance.

The hydraulic cable cutter has a tight structure and needs to be kept by someone. Do not knock and bump, and do not disassemble arbitrarily.
Hydraulic cable cutter can only cut the materials specified in product manual.
After using for a period of time, if it needs to add oil, turn the fixed handle to remove it. Pull out the rear plug of oil storage bag, add #20 mechanical oil (it needs to filter with a 200-mesh filter). After the oil is full and overflowing, release the oil return switch, tap a few times to exhaust the air from oil bag. Then plug the oil plug tightly and tighten the fixed handle.
