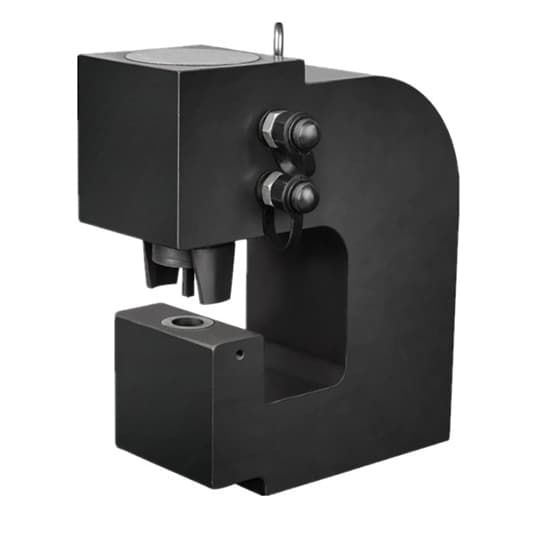

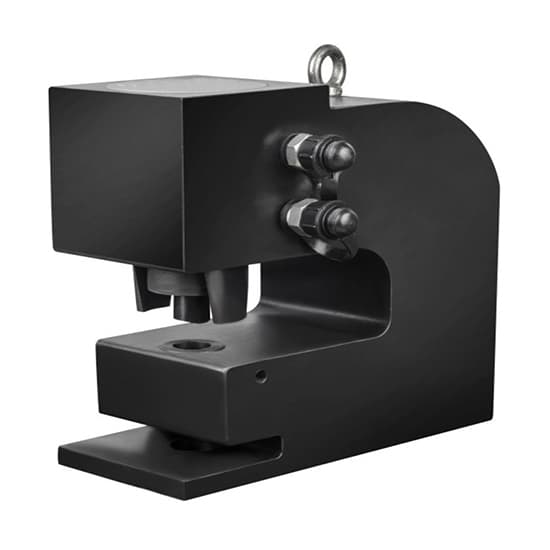

100 Ton Hydraulic Punching Machine

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

13 People watching this product now!

Hydraulic punching machine is a heavy-duty hydraulic punch press, which is need electric hydraulic pump for power source. Applicable materials are iron sheet, angle sheet, U-steel, etc.

Specification

Model		T-CH-100A	T-CH-100B
Output Force		100 Ton	100 Ton
Max. Punching Thickness	Iron Plate	≤20mm	≤20mm
	Angle Steel	8-15#	8-15#
	U-Steel	10-15# (Only Wide Face)	10-15# (Wide and Narrow Face)
Throat Depth		135mm	135mm
Weight		119 kg	130 kg

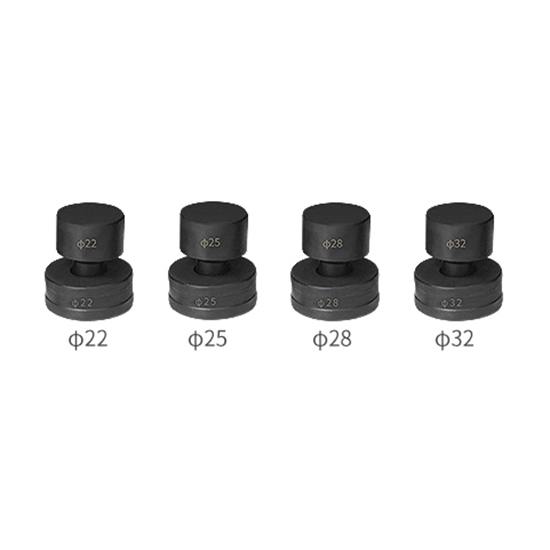

Punching Dies Standard Configuration		Φ 22mm, 25mm, 28mm, 32mm. 1 set for each (includes upper die and lower die)

Note: The hydraulic punching machine needs to be used with a pump. (1.5kW/3.0kW double-acting electric hydraulic pump: T-DB300-D2, T-DB150-S2 are recommended).

Structure Diagram of Portable Hydraulic Punching Machine

Features

The hydraulic punching machine adopts dual oil circuit design, punching and return stroke are completed by hydraulic oil pressure, high punching efficiency.
Punching position is accurate, and blanking is free of burrs.
Hydraulic puncher is suitable for field operation or fixed in the factory for mass production.

Difference between Hydraulic Punching Machine T-CH-100A and T-CH-100B

The difference is that the T-CH-100B can punch the H-Steel and the narrow face of U-steel, but the T-CH-100A can not.

Tips: Hydraulic punching machine maintenance.

The hydraulic oil in hydraulic punching machine needs to be replaced regularly. Basically, replace hydraulic oil every three months. In order to ensure the flexibility of punching machine, it is also necessary to fill the slider with lubricating oil. Before using hydraulic hole puncher, it also needs to be filled with oil.
Column surface of the hydraulic punching machine needs to be kept clean. If the hydraulic puncher will be not used for a long time, clean its surface and apply anti-rust oil to avoid corrosion and rust.
Regularly check the hydraulic pump used with hydraulic punching machine. Check pressure gauge about every 6 months. Protective safety devices, lubrication and other components should also be checked frequently for problems.
After using the hydraulic punching machine, cut off the power in time and wipe the machine tool.
