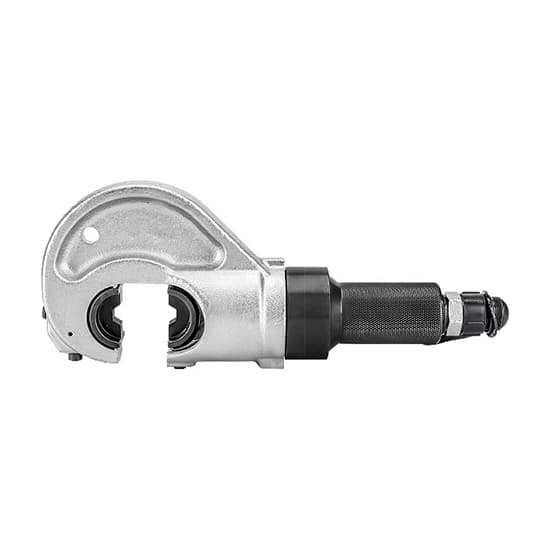

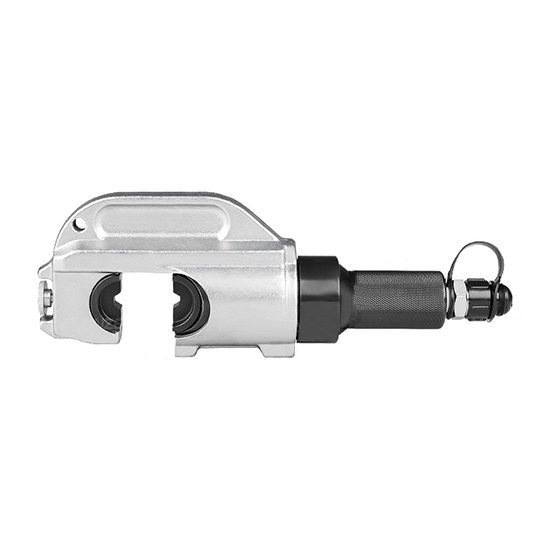

Remote powered hydraulic crimping head can crimp 50~400mm² copper and aluminum cable terminals with 9 crimping dies included, which need to be used with manual or electric hydraulic pump. C-style crimping head, convenient to change the dies, helps compress the wire and cable connectors easily and quickly.

Specification

Model	T-EP-410H	T-EP-510H	T-HT-131H
Crimping Range	50~400mm²	50~400mm²	50~400mm²
Crimping Force	12 Ton	13 Ton	13 Ton
Stroke	32mm	38mm	42mm
Weight	4 kg	5 kg	5.2 kg
Crimping Die Quantity	9 dies
Crimping Die Specification	50, 70, 95, 120, 150, 185, 240, 300, 400 mm²
Recommended Pump*	Hydraulic Hand Pump: T-CP-700 Hydraulic Electric Pump: T-QQ-700, T-HHB-700A, T-DYB-63A

*Note: The hydraulic crimper head needs to be used with a hydraulic pump.

Features

For use with hydraulic pump. Hydraulic hand pump is recommended in case of no electricity, portable and easy to carry. The crimping head can also be equipped with electric hydraulic pump to achieve higher crimping efficiency and save time and effort.
Hexagonal crimping pattern. Best for crimping copper and aluminum cable terminals, good crimping effect.
Crimping dies included. Thickened and compact design, securely installed and not easy to fall off.

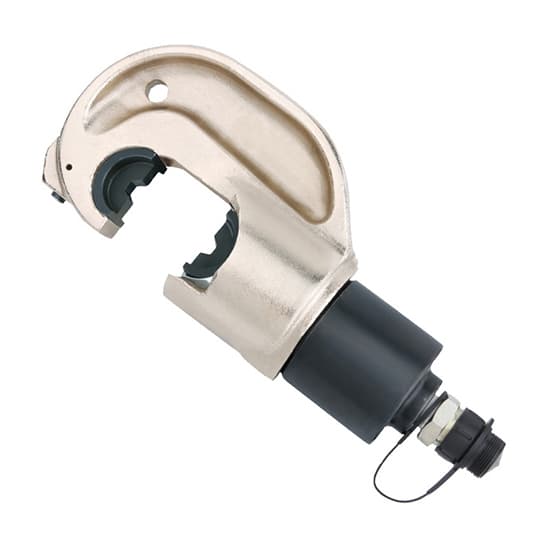

C-shaped ceimping head. Open style crimping head, convenient to put in and take out the cables and connectors.
Connector with plastic dust cap. Hydraulic crimping head comes with a male connector for quick connection to hydraulic pump. The plastic dust cap protect the crimping head from dust.
Wide applications. Hydraulic crimping head is suitable for indoor and outdoor transmission and distribution projects, used to connect various fittings, overhead and underground cables, etc.

Structure Diagram

Crimping Die Dimension (Unit: mm)

Output Force *

Stroke *
