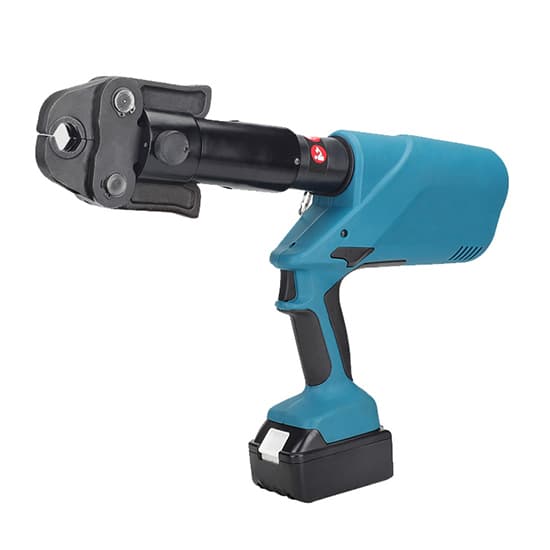

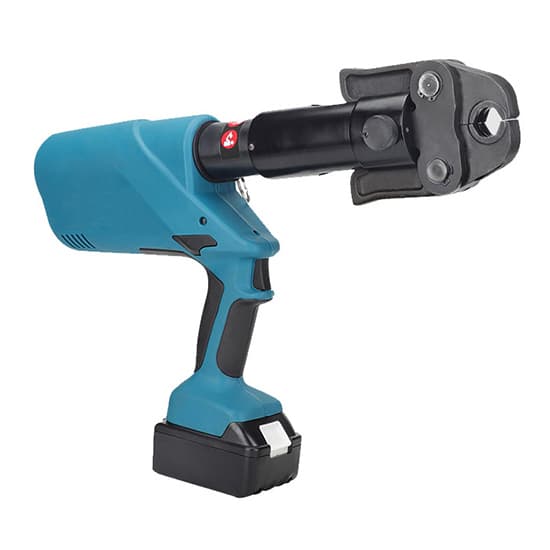

3 Ton Battery Powered Hydraulic Pipe Crimper, 6 Dies
Original price was: $1,526.85.$152.99Current price is: $152.99.
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
80
People watching this product now!
Description
Battery operated hydraulic crimping tools for sale with factory price, free delivery. The battery hydraulic crimper features 3 ton crimping force, 52Mpa rated working pressure, is equipped with two 18v lithium batteries, 6 dies and one charger. Applicable for crimping copper aluminum, plastic pipes, PEX pipes, PB pipes, etc.
Specification
| Model | T-EZ-1550 |
| Crimping Force | 3 Ton (32KN) |
| Rated Working Pressure | 52Mpa |
| Stroke | 35mm |
| Crimp Times/Charge | 350 times DN20 stainless steel pipe fittings |
| Crimping Cycle | 5-8s (according to cable diameter) |
| Voltage | 18V Lithium |
| Battery Capacity | 3.0Ah |
| Charging Voltage | AC 100V~240V, 50Hz~60Hz |
| Charging Time | 2 hours |
| Crimping Dies | DN15, DN20, DN25, DN32, DN40, DN50 |
| Weight | 6.5 kg |
Features
- Durable Material. The hydraulic battery cable crimper and its 6 pairs of dies are made of superior material, high strength, good toughness and longer service life. Its maximum crimping power is 3 tons.
- Wide Application. The battery hydraulic crimping tool is equipped with 6 sets of the crimping dies and the precise crimping tube head can be rotated 360° freely for accurate positioning and narrow space working, a good choice for crimping copper and aluminum terminals.
- Easy to Operate. Provided with double speed and double acting hydraulic device design. During the process of low pressure crimping, piston advances rapidly. After the mold contacts terminal, piston advances slowly to ensure crimping quality.
- Safet to Use. The battery powered hydraulic crimping tool is equipped with safety valve inside for protecting the crimping machine. When the max. pressure reaches, the safety valve will release automatically to prevent over pressure. It also comes with insulated handle to prevent accident electric hitting.
- Easy to Carry. The battery hydraulic crimper comes with a durable plastic box, which makes it portable to carry and compact to store.
Full Set Product Diagram
| ① Hydraulic Pipe Crimper |
| ② 1 Charger |
| ③ 2 Batteries |
| ④ 6 Dies |
Structure Diagram
Dimension
Tips: What should be done after crimping with battery powered pipe crimper?
- After crimping, remove the battery. First press the battery button, and then pull out the battery. As shown in Figure 1.
- Take out the crimping die. Press the die lock button first, and then pull out the crimping die. As shown in Figure 2 and Figure 3.
- Wipe clean the pipe crimper and accessories. Add a small amount of lubricating oil to movable parts and put them into tool box.
