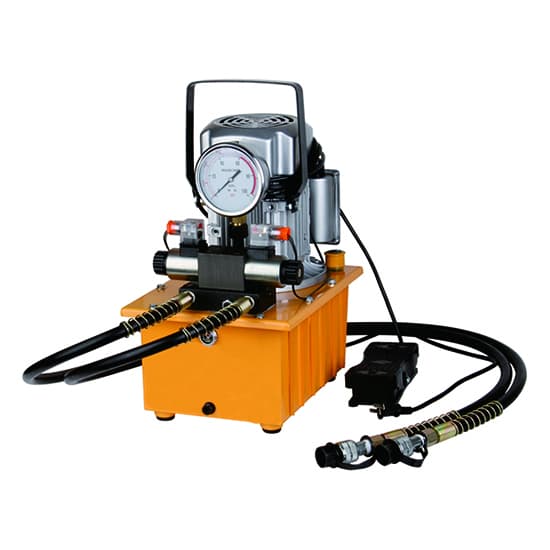

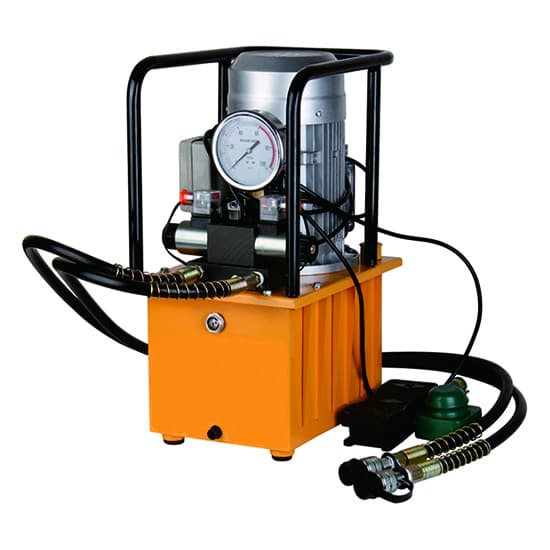

1.5kW Hydraulic Electric Pump, Double-Acting
Price range: $87.99 through $666.45
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
71
People watching this product now!
Description
The hydraulic pump is driven by an electric motor, it has double loop acting. Oil output in high and low pressure 2-stage, rated pressure is 10,000 psi. Power supply is single-phase 110V or 3-phase 380V.
Specification
| Model | T-DB075-D2 | T-DB150-D2 | DB300-D2 |
| High Pressure | 10,000 psi (70Mpa) | ||
| High Pressure Flow Rate | 0.9L/min | 1.7L/min | 2.8L/min |
| Low Pressure | 1015 psi (7Mpa) | 1450 psi (10Mpa) | 1450 psi (10Mpa) |
| Low Pressure Flow Rate | 5L/min | 7.9L/min | 14L/min |
| Motor Power | 0.75kW | 1.5kW | 3kW |
| Voltage | 110V, 380V | ||
| Frequency | 50Hz/60Hz | ||
| Speed | 1400 rpm | ||
| Oil Storage Capacity | 7L | 10L | 30L |
| Oil Type | ≤15# hydraulic oil | ≤15# hydraulic oil | 15#-46# antiwear hydraulic oil |
| Weight | 32 kg | 40 kg | 42 kg |
Features
- Double-acting hydraulic electric pump has large volume and fast speed. Turbine vane-type oil absorption can reach the highest effective oil volume
- Pressure safety valve overload protection device to avoid overload damage or excessive, it will automatically release pressure when it reaches 700kg/cm².
- Oil storage capacity can be customized, oil tube joint is matched with PT3/8″ thread.
Structure Diagram of Double-Acting Hydraulic Electric Pump
Tips: Instructions for using double-acting hydraulic electric pump.
- Before starting, open the bleed nut and the switch on oil collecting block.
- Plug in power supply and connect the quick connector with the equipped hydraulic tool.
- Press the power switch. After motor rotates for 1-2 minutes, turn off the switch and place it in a pressurized state. At this time, the output hydraulic oil will perform various tasks. The output hydraulic oil will be self-pressurized as the load increases to perform various tasks, up to 70Mpa (10000 psi).]
- After the work is over, turn on the switch to unload. After the hydraulic oil returns, remove the quick connector sleeve, screw the bleed nut, and turn off the switch.
