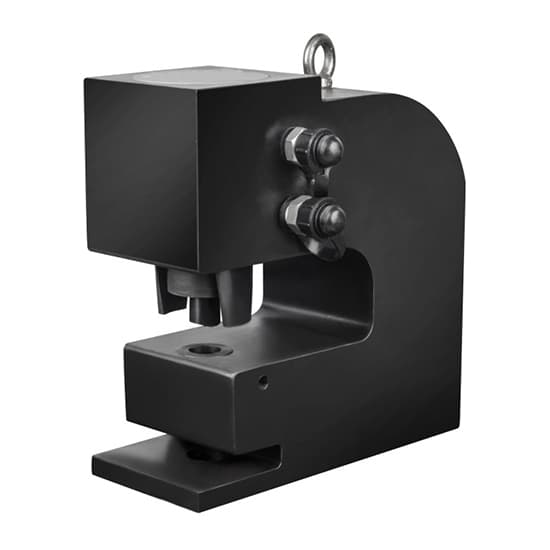

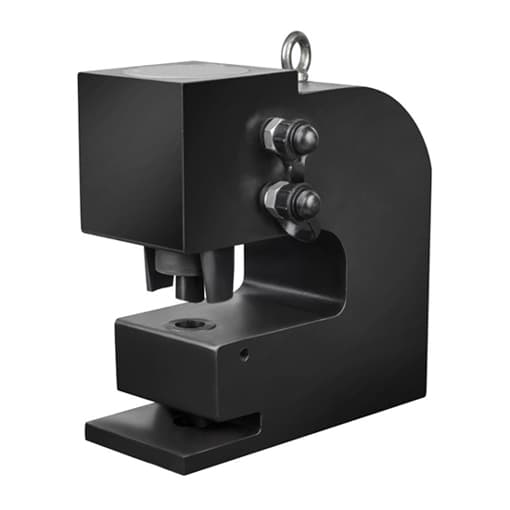

Hydraulic punching machine can punch holes in iron sheet, copper/aluminum busbar, angle sheet, U-steel, etc. It is heavy-duty hole puncher and must used with double-acting electric hydraulic pumps.

Specification

Model		T-CH-80A	T-CH-80B
Output Force		50 Ton	50 Ton
Max. Punching Thickness	Iron Plate	≤16mm	≤16mm
	Copper/Aluminum Busbar	≤20mm	≤20mm
	Angle Steel	6-12#	6-12#
	U-Steel	8-15# (Only Wide Face)	8-15# (Wide and Narrow Face)
Throat Depth		120mm	120mm
Weight		74 kg	81 kg
Punching Dies Standard Configuration		Φ 16mm, 18mm, 22mm, 25mm, 1 set for each (includes upper die and lower die)

Note: The hydraulic punching machine needs to be used with a pump. (1.5kW/3.0kW double-acting electric hydraulic pump: T-DB300-D2, T-DB150-S2 are recommended).

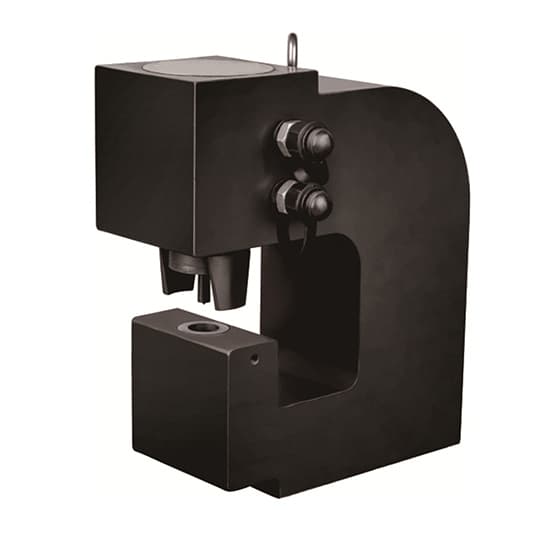

Structure Diagram of Portable Hydraulic Punching Machine

Features

The hydraulic punching machine adopts dual oil circuit design, punching and return stroke are completed by hydraulic oil pressure, high punching efficiency.
Punching position is accurate, and blanking is free of burrs.
Hydraulic puncher equipped with 3/8″ connector, which can be connected to hydraulic pumps of various pressure.

Difference between Hydraulic Punching Machine T-CH-80A and T-CH-80B

The difference is that the T-CH-80B can punch the H-Steel and the narrow face of U-steel, but the T-CH-80A can not.

Tips: Punching dies replacement for hydraulic punching machine.

Upper punching die replacement method: Use a screwdriver to loosen the fixing bolt of the upper die to the left, slowly remove the original upper die and replace it with a new one. Then use screwdriver to tighten the fixing bolt of upper mold to the right.
Lower punching die replacement method: Use Allen wrench to loosen the screw that fixes the die. Then from the bottom of the lower mold, use your fingers or a small tool to eject the lower mold from bottom to top, replace the lower die that matches the upper die, and tighten it with small wrench.

Note: 1. The side with words on the lower die faces up, not down. 2. When replacing the mold, first remove the upper mold to replace the lower mold.
