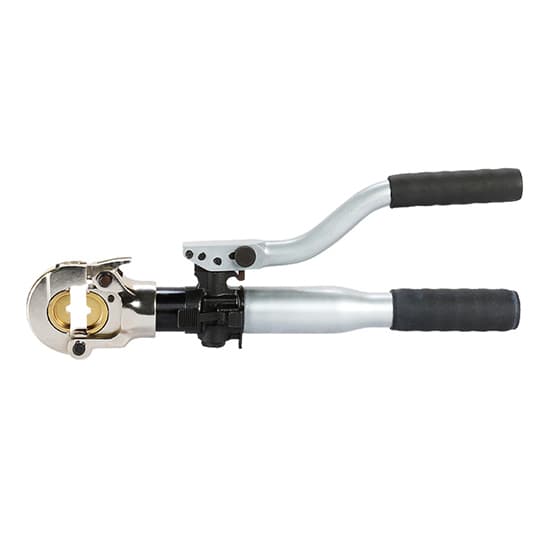

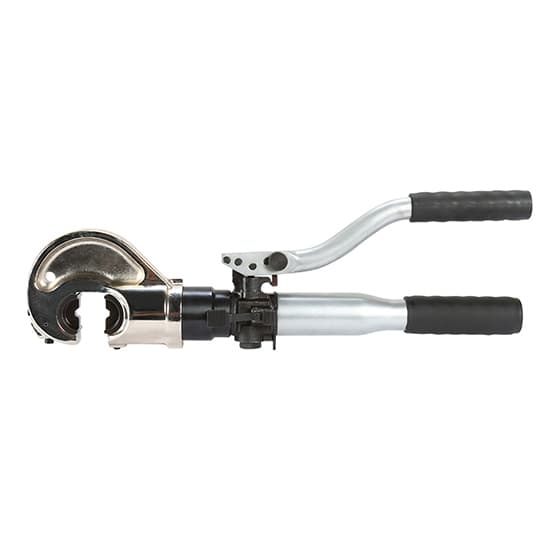

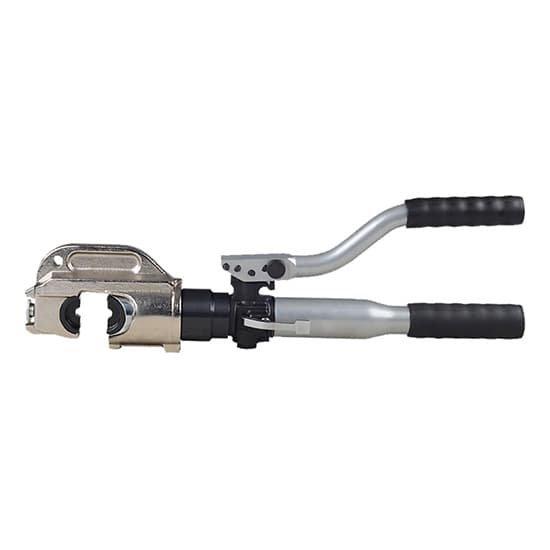

High quality hydraulic crimping tool is equipped with 9-11 sets of the crimping dies which features 16~300mm² and 16~400mm² crimping range, the hand tool provides maximum crimping power 11 tons and its head can be rotated 180° freely for narrow space working, a good choice as a hand tool for crimping terminal, hose, battery and welding cables, power wires, electrical cables, etc.

Specification

Model	T-HT-300	T-HT-12030	T-HT-12032	T-HT-12038
Crimping Range	16~300mm²	16~300mm²	16~400mm²	16~400mm²
CrimpingForce	6 Ton	12 Ton	12 Ton	12 Ton
Stroke	17mm	32mm	32mm	38mm
Overall Length	460mm	545mm	552mm	560mm
Weight	3.7 kg	6.5 kg	6.5 kg	6.8 kg
Die Quantity	11	11	9	9
Crimping Dies Configuration	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²	50, 70, 95, 120, 150, 185, 240, 300, 400 mm²	50, 70, 95, 120, 150, 185, 240, 300, 400 mm²

Features

Durable Material. The hydraulic crimper is made of superior steel material with high strength & good toughness and 9-11 sets of hexagon crimping dies are made of hardened steel with chrome finish, providing strong stability for longer service life.
Wide Application. The hydraulic crimping tool features 6 ton / 12 ton maximum crimping force and its head can be rotated 180° freely for narrow space working, best for crimping cable, copper / aluminum terminal and hose.
Easy to Operate. High and low speed hydraulic pressure working design for easy and safe operation and comes with electric, non slip & insulated grip design for comfortable crimping.
Easy to Carry. The hydraulic hose crimper is equipped with a durable plastic box, which makes it portable to carry and compact to store.

Structure Diagram

Copper Terminals Crimping Effect Diagram

Tips: Hydraulic oil replacement method for crimping pliers.

To ensure service life of the hydraulic crimping tool, hydraulic oil in the tool must be replaced once a year. Hydraulic oil must be filtered through an oil filter before being injected. The filter must have a filter screen of 120 mesh or more, or a filter accuracy of more than 30μm. At the same time, prevent any impurities from entering the tool oil reservoir and ensure cleanliness of the hydraulic oil.

Specific steps:
