Name: M6~M27 Hydraulic Nut Splitter, 5~20 Ton
Brand: Tool
SKU: 1317
Availability: InStock

M6~M27 Hydraulic Nut Splitter, 5~20 Ton

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

61 People watching this product now!

The splitting tool is the cutter head of hydraulic nut splitter, so it is needs to used with a hydraulic hand pump or electric pump for power source.

Specification

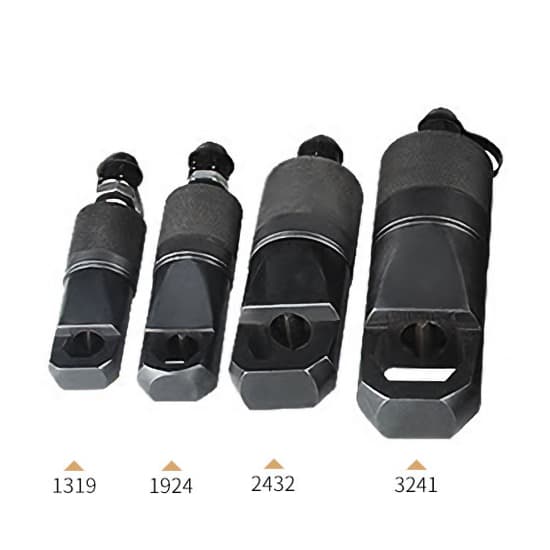

Model		T-NC-1319	T-NC-1924	T-NC-2432	T-NC-3241
Output Force		5 Ton	10 Ton	15 Ton	20 Ton
Nut Range	Nut Specification	M6-M12	M12-M16	M16-M22	M22-M27
Nut Range	Opposite Side Length	10-19mm	19-24mm	24-32mm	32-41mm
Weight		1.2 kg	2 kg	3 kg	4.4 kg
Recommended Pump		Hydraulic Hand Pump: T-CP-700 (10,000 psi, 900 cc Oil Reservoir) Hydraulic Electric Pump: T-HHB-700A (10,000 psi, 750W), T-QQ-700 (10,000 psi, 1.2kW)

Features

The hydraulic nut splitter can easily split and cut corroded nuts, compact structure, portable and easy to operate.

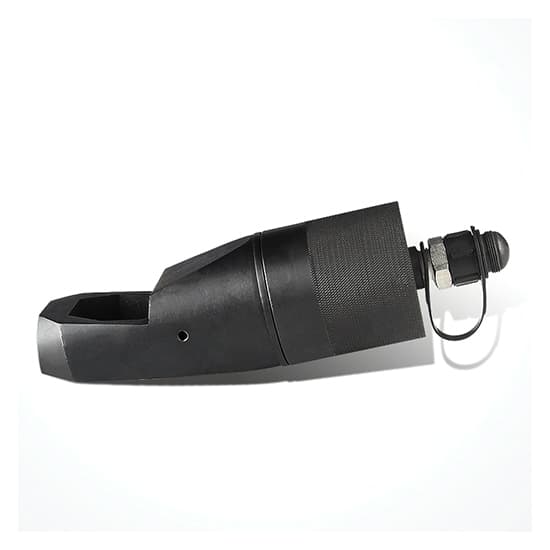

Split hydraulic design, equipped with ZG3/8″ quick connector and dust cap, which is convenient for connecting various hydraulic pumps.
The spring automatically resets. Nut splitter tool also available in explosion-proof environment.

Hydraulic Nut Splitter Instructions

Open the oil plug of hydraulic hand pump, fill with 20# oil or hydraulic oil, and close the unloading valve.

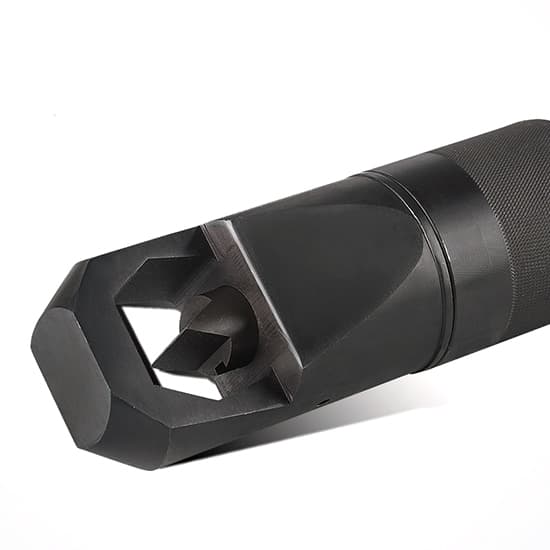

Sleeve the hole of hydraulic nut splitter head into nut and place it level.
Press the hydraulic hand pump to push the splitting cutter out and advance to the nut. When splitting cutter is pushed into one half of the nut, hand pump must be pressed carefully to avoid excessive force, which may cause the splitting cutter to speed too fast and damage bolt threads
When hearing a cracking sound, it means that the nut has been broken, and stop pressing hand pump at this time.
Unscrew the unloading valve, reset the splitter, remove the hydraulic nut splitter, and the work is over.

Nut Splitting Operation Steps

First, split the first side. Align the cutter head at the middle of nut to split it. (As shown in Figure 1)
Split the opposite side. Adjust direction, align the cutter head at the middle of nut, to cut the other side. Both sides need to be symmetrical. (As shown in picture 2)

Tips: Hydraulic nut splitter applications.

As we all know, nut is a tool widely used in industrial production. In an open high temperature or corrosive environment, some nuts will be rusted, and some nuts thread will be damaged due to being hit. In short, when these problems occur, it is very difficult to disassemble nuts.

In the past, nuts and bolts are usually cut off simultaneously by gas welding or electric welding. However, in some special working conditions, sometimes it is strictly forbidden to use fire (electric) welding operations (such as pulverized coal silos of power plants, high-pressure and high-temperature pipelines of oil pipelines, etc.). It is helpless to replace nuts and bolts.

At this time, the hydraulic nut splitter can be used without fire, without electricity, and does not damage the bolt threads. The problem of disassembly and replacement of bolts and nuts can be solved simply, quickly, safely and efficiently.
