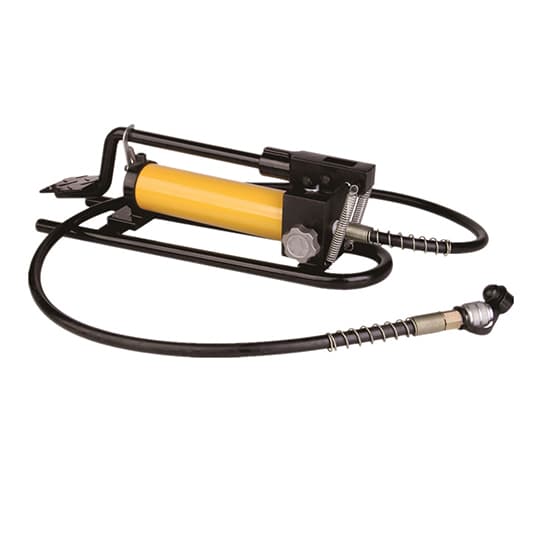

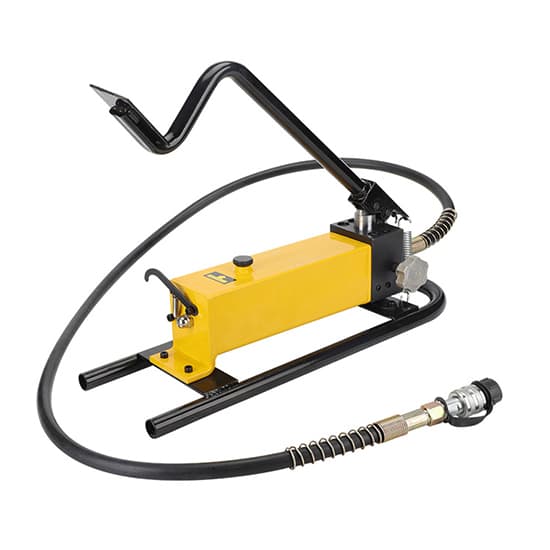

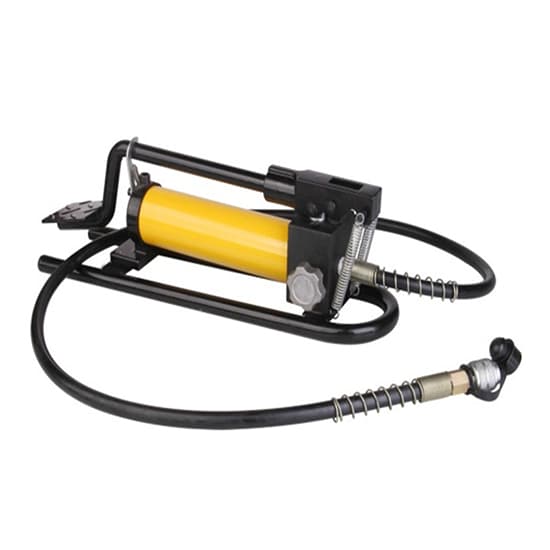

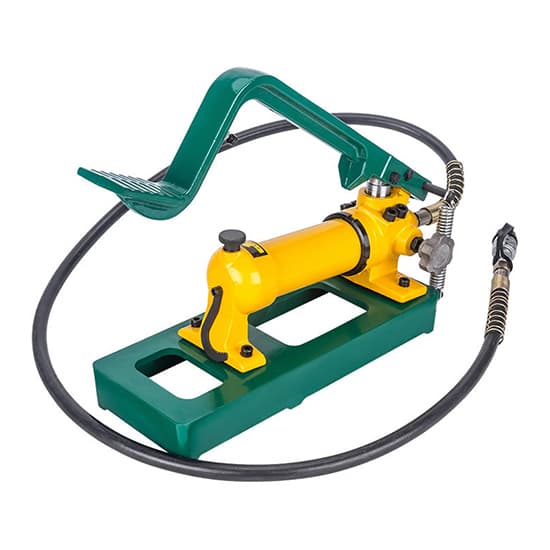

The hydraulic foot pump is operated and controlled by pedal. Oil output is high and low 2-stage. It has double-acting, small size, portable and convenient for use, price is affordable.

Specification

Model		T-CFP-800-I	T-CFP-800-A	T-CFP-700D	T-CFP-700D-1
Max. Output Pressure	kg/cm²	700
	psi	10,000
	bar	689
Pressure Rating	Low Pressure	20 kg/cm²
Pressure Rating	High Pressure	700 kg/cm²
Oil Amount/min	Low	13cc	13cc	12.26cc	12.26cc
Oil Amount/min	High	2.3cc	2.3cc	2.26cc	2.26cc
Oil Reservoir Capacity		600 cc	700 cc	900 cc	1,500 cc
Frame Material		Iron	Aluminum	Iron	Iron
Default Oil Pipe Length		2m	2m	2m	2m
Size	mm	620220280	660200300	450150200	450150200
Size	inch	24.48.711	26811.8	17.768	17.768
Weight		15 kg	10 kg	12 kg	13 kg

Features

The hydraulic foot pump can be connected to a variety of tools, including cutting machine, punching machine, bending machine, angle steel cutting tool, jack, puller, crimping tool, etc.
Two-stage oil output, large quantity and fast speed. Easy to carry, not affected by electricity. The high-pressure pipe can be extended and used.
Functions of hydraulic foot pump is the same as the electric and hand pump.

Hydraulic Foot Pump Structure Diagram

Bleed nut
When using hydraulic foot pump, must loosen this nut to prevent the oil reservoir from being sealed. The vent port is the oil filler.
Optional pressure gauge
According to requirements, a shock-resistant pressure gauge can be added on oil outlet of the hydraulic foot pump head, to observe pressure changes at any time.
Oil return switch
Tighten the oil return valve clockwise first, then step on the pedal repeatedly. Hydraulic foot pump starts to work and the pressure gradually rises. Tighten the oil return valve clockwise when working. Loosen the oil return valve counterclockwise when releasing pressure.
Quick female connector
Hydraulic oil tube is equipped with a thread quick connector. Thread specification is 3/8″.

Hydraulic Foot Pump Usage Steps

Connect the high-pressure oil pipe female joint of the main pump and the male joint of the sub-machine oil pressure cylinder, and tighten them.
Tighten the oil return switch of the pump clockwise, step on the pedal repeatedly to advance piston until the work is completed.
After completion, loosen the oil return switch counterclockwise to reset the piston.
