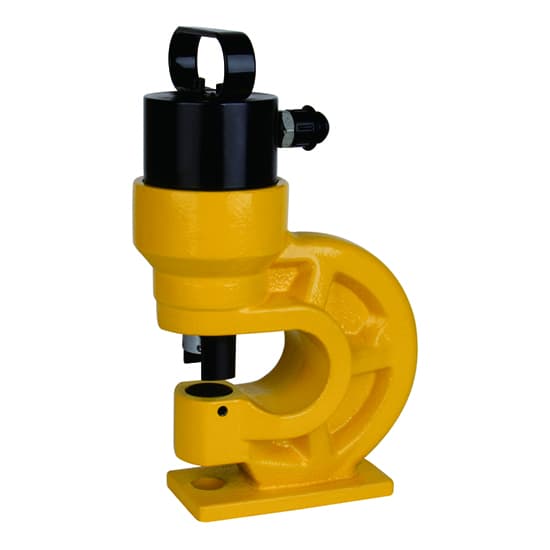

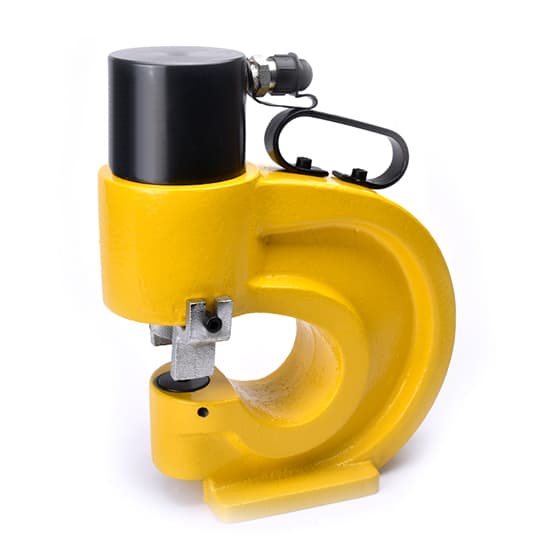

Portable hydraulic punching machine is a hole press puncher driven by hydraulic pumps, it is suitable for iron sheet and copper busbar.

Specification

Model		T-CH-70	T-CH-60
Output Force		35 Ton	31 Ton
Max. Punching Thickness	Iron Sheet	10mm	6mm
	Copper Busbar	12mm	10mm
Throat Depth		110mm	95mm
Size		335180380mm	260145380mm
Weight		35 kg	19 kg
Punching Dies Standard Configuration		Φ 10.5mm (3/8″), 13.8mm (1/2″), 17mm (5/8″), 20.5mm (3/4), 1 set for each (includes upper die and lower die)

Note: The hydraulic punching machine needs to be used with a pump. Hydraulic hand pump T-CP-700, hydraulic electric pump T-DYB-63A (750W), T-HHB-700A (750W) or T-QQ-700 (1.2kW) is recommended.

Structure Diagram of Portable Hydraulic Punching Machine

Features

Portable hydraulic punching machine is used in punching holes for metal materials such as aluminum and copper busbars. It is a special punching tool for busbar installation.
Fast punching speed, accurate positioning and no offset.
Hydraulic punching can eliminate the chips generated during mechanical drilling, provide a safe and clean working environment.
Fast oil return, fast oil flowing. Dies made of quenching heat treatment, resistant to stamping, long life.

Hydraulic Punching Machine Installation Instructions


1. Use Allen wrench to install, fix and remove punching dies.	2. Use a rivet to remove the nut (only for model T-CH-60)

3. Model T-CH-70 can be removed the nut manually.	4. Use auxiliary material board for the auxiliary stripping of thin and narrow plates.

Tips: Precautions for use of hydraulic punching machine.

When installing the punching dies of hydraulic punching machine, specifications of the upper and lower dies must be the same. The upper die fixing sleeve must be tightened.
When installing the lower die of hydraulic hole puncher, pay attention to the cutter edge (that is, the end with the smaller diameter) upward. Don’t install it upside down, otherwise it will damage the machine.
During the operation of hydraulic punching machine, do not remove the quick connector when the system has working pressure.
Pay attention to clearing the waste material generated during punching, so as not to block the lower die hole and damage the punching machine.
The punched copper/aluminum busbar should be basically flat.
After using the hydraulic punching machine, remember to refueling and venting.
