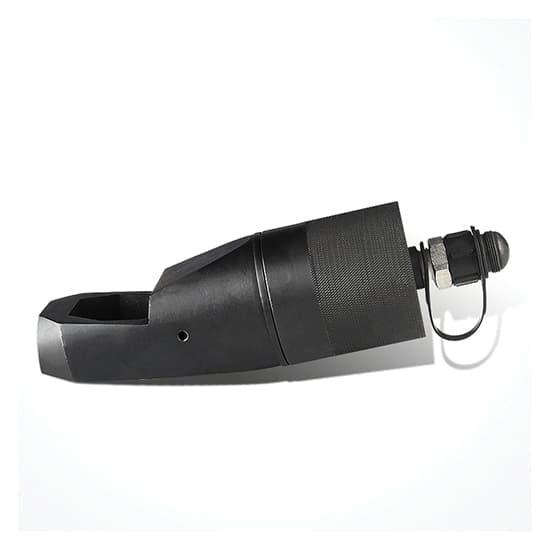

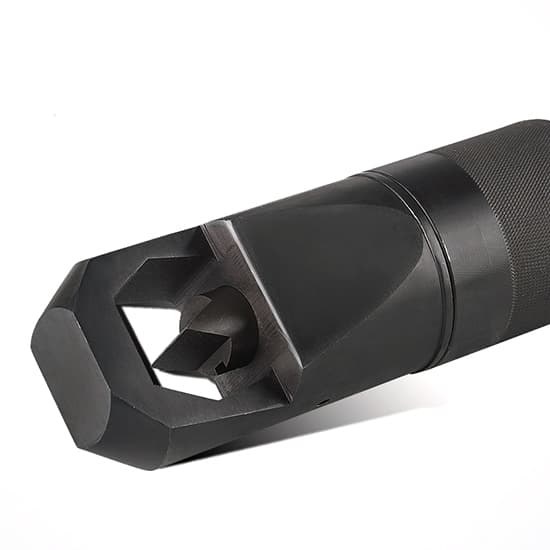

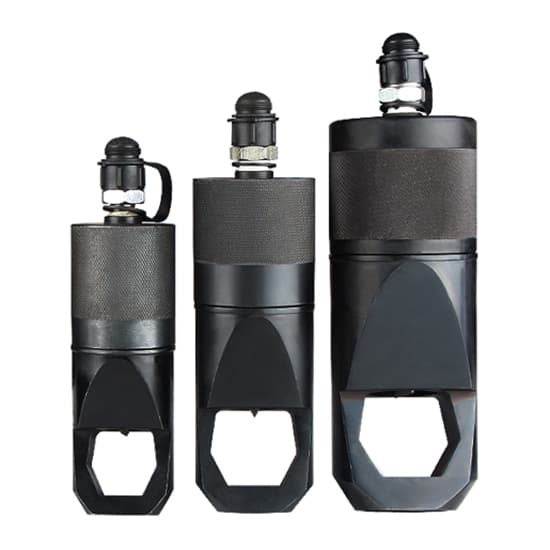

The hydraulic nut splitter is the head part of a nut splitter tool, which is driven by a hydraulic pump (manual or electric). Meet the needs of nut breaking and cutting of various specifications.

Specification

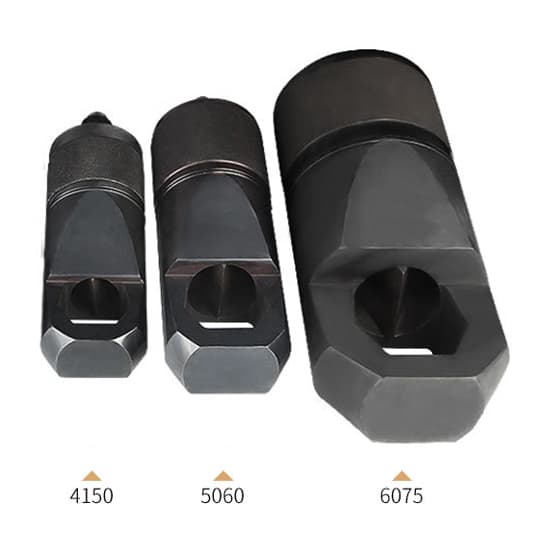

Model		T-NC-4150	T-NC-5060	T-NC-6075
Output Force		35 Ton	50 Ton	90 Ton
Nut Range	Nut Specification	M27-M33	M33-M39	M39-M48
Nut Range	Opposite Side Length	41-50mm	50-60mm	60-75mm
Weight		8.2 kg	11.8 kg	34.1 kg
Recommended Pump		Hydraulic Hand Pump: T-CP-700 (10,000 psi, 900 cc Oil Reservoir) Hydraulic Electric Pump: T-HHB-700A (10,000 psi, 750W), T-QQ-700 (10,000 psi, 1.2kW)

Features

The hydraulic nut splitter is an ideal breaker for rusty nuts, compact structure, portable and easy to operate.
Split hydraulic design, equipped with ZG3/8″ quick connector and dust cap, which is convenient for connecting various hydraulic pumps.
The spring automatically resets. Nut splitter tool also available in explosion-proof environment.

Hydraulic Nut Splitter Instructions

Open the oil plug of hydraulic hand pump, fill with 20# oil or hydraulic oil, and close the unloading valve.
Sleeve the hole of hydraulic nut splitter head into nut and place it level.
Press the hydraulic hand pump to push the splitting cutter out and advance to the nut. When splitting cutter is pushed into one half of the nut, hand pump must be pressed carefully to avoid excessive force, which may cause the splitting cutter to speed too fast and damage bolt threads
When hearing a cracking sound, it means that the nut has been broken, and stop pressing hand pump at this time.
Unscrew the unloading valve, reset the splitter, remove the hydraulic nut splitter, and the work is over.

Nut Splitting Operation Steps

First, split the first side. Align the cutter head at the middle of nut to split it. (As shown in Figure 1)
Split the opposite side. Adjust direction, align the cutter head at the middle of nut, to cut the other side. Both sides need to be symmetrical. (As shown in picture 2)

Tips: Hydraulic nut splitter safe operations.

Please follow the safety tips to avoid damage to the cutter head, housing, plunger and seals of hydraulic nut splitter.

When operating hydraulic nut splitter, please wear correct overalls, gloves, safety glasses, etc. During the nut splitter working, do not put your fingers on or near the cutting blade to avoid being cut.
Do not use hydraulic nut splitter to cut chains or bolts.
Do not use hydraulic nut splitter to rotate the nut.
Do not move the hydraulic nut splitter during the splitting process.
Do not heat the nut when nut splitter is in place.
Pay attention to avoid the tool overheating or contact with open flames, moving machine parts, sharp edges and corrosive chemicals, etc., to protect nut splitter components from external damage.
Do not use hydraulic nut splitter on glass, plastic, wood and other easily broken materials.
