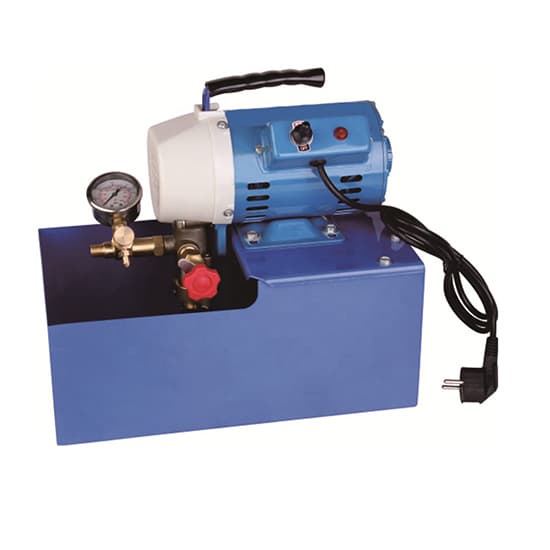

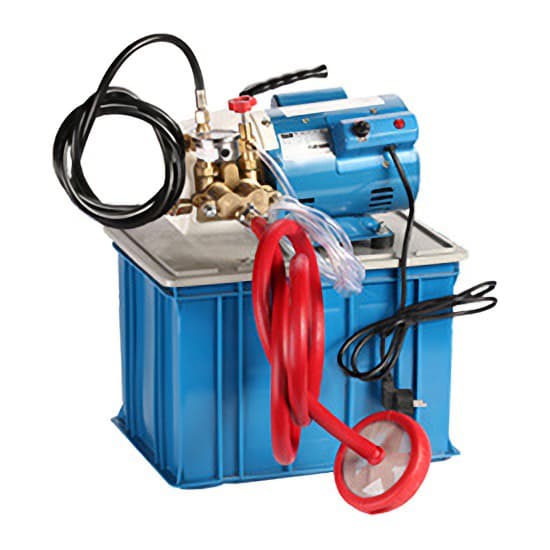

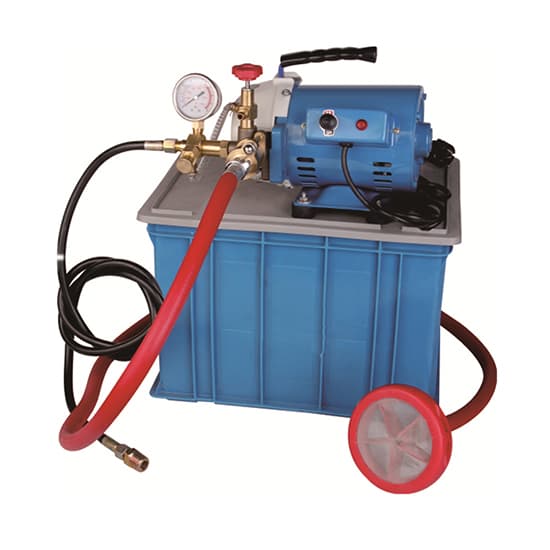

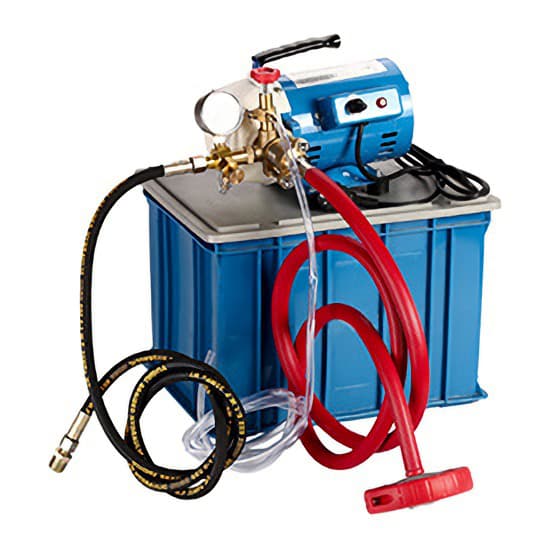

Name: Electric Pressure Test Pump, 2.5~10MPa, 0.2~0.5 HP
Brand: Tool
SKU: 1303
Availability: InStock

Electric Pressure Test Pump, 2.5~10MPa, 0.2~0.5 HP

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

59 People watching this product now!

Pressure test pump is a hydraulic electric pump used for testing pressure value and sealing performance, applicable objects are pressure vessel, water pipe, PPR pipe, and other plumbing.

Specification

Model		T-DSY-25	T-DSY-60	T-DSY-100	T-DSY-60A
Rated Voltage		220V
Working Pressure	MPa	2.5	6	10	6
Working Pressure	psi	363	870	1,450	870
Motor Power	HP	0.2	0.3	0.5	0.5
Motor Power	W	150	250	350	400
Flow Rate		180 L/H	180 L/H	180 L/H	360 L/H
Weight		11 kg	12.5 kg	13.5 kg	17 kg
Overall Dimension (LWH)		360220130mm	400300270mm	400300290mm	400300270mm
Hose Port		G1/2″ (DN15, 20mm)

Electric Pressure Test Pump Structure Diagram

Pressure Gauge Diagram

T-DSY-25	T-DSY-60 T-DSY-60A	T-DSY-100

The black number in the dial: 1 = 1 MPa = 10 kg/cm². For example, T-DSY-25 indicates that the maximum pressure is 25 kg/cm², which is equal to 2.5 MPa, and the same for other models, etc.
Red bold area is warning area, do not overvoltage.

Note

The normal water pressure of tap water is 0.3MPa (0.1MPa is 1kg pressure), and the water pressure of high floors is 0.4MPa.
Water pipe pressure testing is generally between 0.8~1.0MPa. Pressure testing time for household pipelines is maintained at 2 to 4 hours. (The specific situation is subject to the actual construction environment)
Pressure testing for home should be between 0.8~1.0MPa. Excessive pressure will shorten the service life of pipeline and even cause fatal damage to pipeline. For industrial pressure testing, adjust pressure according to demand.

Electric Pressure Test Pump Operation Steps

Connect the water supply pipe, return pipe (except T-DSY-25), and outlet pipe in sequence.
Insert the water supply pipe and return pipe into water tank, and fill water tank with clean water.
Turn on power switch. After water flows out of the high-pressure water outlet pipe, connect it to the tested pipe or airtight container, and tighten the pressure relief valve. Observe the pressure gauge pointer. After reaching the required pressure value, turn off motor and hold pressure for a long time, and turn the overpressure protection sheet to safe position.
During the first pressure test, sometimes there is gas in container, it requires the second to third pressure compensation.
After pressure test is over, the relief valve must be loosened to complete the pressure relief.

Tips: Something that need attention when using electric pressure test pump.

Before using electric pressure test pump, check the water level in water tank. When connecting the power cord, power supply should be connected to a socket with leakage protection. A reliable grounding device should be provided to protect the machine and personal safety.
Connect all pipe joints and seal the connection to ensure no leakage.
Tighten the hand wheel switch clockwise.
Turn on motor switch and electric pressure test pump starts to work. When pressure gauge pointer reaches the set rated pressure, pressure value will no longer rise.
After pressure testing is over, unscrew the hand wheel counterclockwise to make medium flow back to water tank, and pressure gauge is reset to zero.
