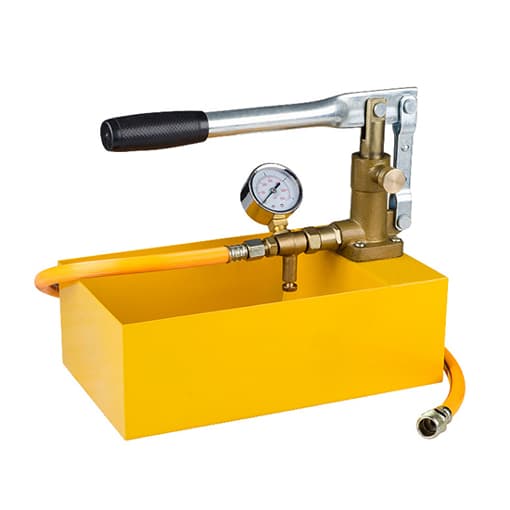

Pressure test pump is a hydraulic pump applied in industrial and home use, for pressure vessel testing, pipeline pressure testing, etc. Hand operated, portable and convenient.

Specification

Model		T-SYB-25	T-SYB-40	T-SYB-63
Working Pressure	MPa	2.5	4	6.3
	psi	363	580	914
Water Absorption Frequency		13mL
Water Tank		4.5L
Hose Port		G1/2″ (DN15, 20mm)
Weight		2.9 kg
Dimension (LWH)		300180255mm

Installation and Use Precautions

Pressure Gauge Reading

The normal water pressure of tap water is 0.3MPa (0.1MPa is 1kg pressure), and the water pressure of high floors is 0.4MPa.
Water pipe pressure testing is generally between 0.8~1.0MPa. Pressure testing time for household pipelines is maintained at 2 to 4 hours. (The specific situation is subject to the actual construction environment)
Pressure testing for home should be between 0.8~1.0MPa. Excessive pressure will shorten the service life of pipeline and even cause fatal damage to pipeline. For industrial pressure testing, adjust pressure according to demand.

Pressure Relief Valve

The manual pressure test pump has a pressure relief valve. During installation, pressure relief hole must be aligned with the water discharge hole on water tank, to avoid water splashing on the ground or body when pressure relieving.

Pump Head Oil Hole

Pour oil into the hole to lubricate piston and improve the durability of seals.

Manual Pressure Test Pump Operation Steps


1. Assemble the pressure test pump, check whether the main body and accessories are complete.	2. Connect one end of oil tube to pump body. (Pay attention to seal connection and add gaskets, otherwise water will leak)	3. Connect the other end of oil tube to the pipeline to be tested. (Be sure to wrap it with PTFE TAPE)

4. Fill the tested pipe with water, exhaust air, then close the pressure relief valve.	5. Fill the water tank with water, then press the handle rod up and down to start pressure test and pressurization.	6. When the pressure gauge reading rises to the required value, pressurization can be stopped at this time.

Note: After pressurization is stopped, if the value shown on the pressure gauge does not decrease, it indicates that the pipeline has good pressure resistance. On the contrary, it means that sealing performance of the tested pipeline is not good, there is leakage, so the pressure drops.

Tips: Manual pressure test pump troubleshooting.
